PCM1795 Datasheet by Texas Instruments

Datasheet Feedback/Errors

V'.‘ ‘F. B X E I TEXAS INSTRUMENTS

PowerSupply

RST

SCK

Advanced

Segment

DAC

Modulator

IOUTL+

IOUTL-

IOUTR-

IOUTR+

Bias

andVREF

VCOML

VCOMR

AGND2

VDD

VCC1

VCC2L

VCC2R

AGND1

I/V andFilter

Oversampling

DigitalFilter

and

FunctionControl

Audio

DataInput

I/F

LRCK

BCK

DATA

MDO

MDI

AGND3L

AGND3R

DGND

Current

Segment

DAC

IREF

VOUTL

I/VandFilter

VOUTR

Function

ControlI/F

MSEL

Zero

Detect

ZEROL

ZEROR

System

Clock

Manager

Current

Segment

DAC

Product

Folder

Sample &

Buy

Technical

Documents

Tools &

Software

Support &

Community

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

PCM1795 32-Bit, 192-kHz Sampling, Advanced Segment,

Stereo Audio Digital-to-Analog Converter

1 Features 3 Description

The PCM1795 device is a monolithic CMOS

1• 32-Bit Resolution integrated circuit that includes stereo digital-to-analog

• Analog Performance: converters (DACs) and support circuitry in a small

– Dynamic Range: 123 dB SSOP-28 package. The data converters use TI’s

advanced segment DAC architecture to achieve

– THD+N: 0.0005% excellent dynamic performance and improved

• Differential Current Output: 3.9 mAPP tolerance to clock jitter. The PCM1795 provides

• 8× Oversampling Digital Filter: balanced current outputs, letting the user optimize

analog performance externally. The PCM1795

– Stop-Band Attenuation: –98 dB accepts pulse code modulation (PCM) and direct

– Passband Ripple: ±0.0002 dB stream digital (DSD) audio data formats, thus

• Sampling Frequency: 10 kHz to 200 kHz providing an easy interface to audio digital signal

• System Clock: 128, 192, 256, 384, 512, processors (DSPs) and decoder chips. The PCM1795

device also interfaces with external digital filter

or 768 fSWith Autodetect devices such as the DF1704,DF1706, and the

• Accepts 16-, 24-, and 32-Bit Audio Data PMD200 from Pacific Microsonics™. Sampling rates

• PCM Data Formats: Standard, I2S, and Left- up to 200 kHz are supported. A full set of user-

Justified programmable functions is accessible through an SPI

or I2C serial control port that supports register write

• DSD Format Interface Available and readback functions. The PCM1795 device also

• Interface Available for Optional External Digital supports the time-division-multiplexed (TDM)

Filter or DSP command and audio (TDMCA) data format.

• TDMCA or Serial Port (SPI™/I2C)

• User-Programmable Mode Controls: Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)

– Digital Attenuation:

0 dB to –120 dB, 0.5-dB/Step PCM1795 SSOP (28) 10.20 mm × 5.30 mm

– Digital De-Emphasis (1) For all available packages, see the orderable addendum at

the end of the data sheet.

– Digital Filter Roll-Off: Sharp or Slow

– Soft Mute Block Diagram

– Zero Flag for Each Output

• Compatible With PCM1792A and PCM1796

(Pins and Mode Controls)

• Dual Supply Operation:

– 5-V Analog, 3.3-V Digital

• 5-V Tolerant Digital Inputs

• Small SSOP-28 Package

2 Applications

• A/V Receivers

• SACD Players

• DVD Players

• HDTV Receivers

• Car Audio Systems

• Digital Multitrack Recorders

• Other Applications Requiring 32-Bit Audio

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Table of Contents

7.4 Device Functional Modes........................................ 21

1 Features.................................................................. 17.5 Programming........................................................... 21

2 Applications ........................................................... 17.6 Register Maps......................................................... 27

3 Description ............................................................. 18 Application and Implementation ........................ 37

4 Revision History..................................................... 28.1 Application Information............................................ 37

5 Pin Configuration and Functions......................... 38.2 Typical Applications ................................................ 37

6 Specifications......................................................... 59 Power Supply Recommendations...................... 57

6.1 Absolute Maximum Ratings ..................................... 510 Layout................................................................... 57

6.2 ESD Ratings.............................................................. 510.1 Layout Guidelines ................................................. 57

6.3 Recommended Operating Conditions....................... 510.2 Layout Example .................................................... 58

6.4 Thermal Information.................................................. 611 Device and Documentation Support ................. 59

6.5 Electrical Characteristics........................................... 611.1 Device Support...................................................... 59

6.6 Timing Requirements................................................ 911.2 Trademarks........................................................... 59

6.7 Typical Characteristics............................................ 10 11.3 Electrostatic Discharge Caution............................ 59

7 Detailed Description............................................ 17 11.4 Glossary................................................................ 59

7.1 Overview ................................................................. 17 12 Mechanical, Packaging, and Orderable

7.2 Functional Block Diagram....................................... 17 Information ........................................................... 59

7.3 Feature Description................................................. 18

4 Revision History

Changes from Original (May 2009) to Revision A Page

• Added Pin Configuration and Functions section, ESD Rating table, Recommended Operating Conditions table,

Feature Description section, Device Functional Modes,Application and Implementation section, Power Supply

Recommendations section, Layout section, Device and Documentation Support section, and Mechanical,

Packaging, and Orderable Information section ..................................................................................................................... 1

Product Folder Links: PCM1795

‘5‘ TEXAS INSTRUMENTS 33333333333333 ECCCCCCCCCCCCC , _

ZEROL

ZEROR

MSEL

LRCK

DATA

BCK

SCL

DGND

VDD

MDI

MDO

RST

V 2L

AGND3L

I L-

OUT

I L+

OUT

AGND2

V 1

V L

COM

V R

COM

IREF

AGND1

I R-

OUT

I R+

OUT

AGND3R

V 2R

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

5 Pin Configuration and Functions

DB Package

28-Pin SSOP

(Top View)

Pin Functions

PIN TYPE DESCRIPTION

NAME NO.

AGND1 19 — Analog ground (internal bias)

AGND2 24 — Analog ground (internal bias)

AGND3L 27 — Analog ground (left channel DACFF)

AGND3R 16 — Analog ground (right channel DACFF)

BCK 6 Input Bit clock input(1)

DATA 5 Input Serial audio data input(1)

DGND 8 — Digital ground

IOUTL+ 25 Output Left channel analog current output+

IOUTL– 26 Output Left channel analog current output–

IOUTR+ 17 Output Right channel analog current output+

IOUTR– 18 Output Right channel analog current output–

IREF 20 — Output current reference bias pin

LRCK 4 Input Left and right clock (fS) input(1)

MC 12 Input Mode control clock input(1)

MDI 11 Input Mode control data input(1)

Input or

MDO 13 Mode control read-back data output(2)

Output

Input or

MS 10 Mode control chip-select input(3); active low

Output

MSEL 3 Input I2C/SPI select(1); active low SPI select

(1) Schmitt-trigger input, 5-V tolerant.

(2) Schmitt-trigger input and output. 5-V tolerant input. In I2C mode, this pin becomes an open-drain 3-state output; otherwise, this pin is a

CMOS output.

(3) Schmitt-trigger input and output. 5-V tolerant input and CMOS output.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Pin Functions (continued)

PIN TYPE DESCRIPTION

NAME NO.

RST 14 Input Reset(1); active low

SCK 7 Input System clock input(1)

VCC1 23 — Analog power supply, 5 V

VCC2L 28 — Analog power supply (left channel DACFF), 5 V

VCC2R 15 — Analog power supply (right channel DACFF), 5 V

VCOML 22 — Left channel internal bias decoupling pin

VCOMR 21 — Right channel internal bias decoupling pin

VDD 9 — Digital power supply, 3.3 V

Input or

ZEROL 1 Zero flag for left channel(3)

Output

Input or

ZEROR 2 Zero flag for right channel(3)

Output

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

6 Specifications

6.1 Absolute Maximum Ratings(1)

Over operating free-air temperature range, unless otherwise noted.

MIN MAX UNIT

VCC1, VCC2L, VCC2R –0.3 6.5 V

Supply voltage VDD –0.3 4 V

Supply voltage VCC1, VCC2L, VCC2R –0.1 0.1 V

differences

Ground voltage AGND1, AGND2, AGND3L, AGND3R, DGND –0.1 0.1 V

differences

LRCK, DATA, BCK, SCK, MSEL, RST, MS (2), MDI, MC, –0.3 6.5 V

MDO(2), ZEROL(2), ZEROR(2)

Digital input voltage

ZEROL(3), ZEROR(3), MDO(3), MS (3) –0.3 (VDD + 0.3) < 4 V

Analog input voltage –0.3 (VCC + 0.3) < 6.5 V

Input current (any pins except supplies) –10 10 mA

Ambient temperature under bias –40 125 °C

Junction temperature 150 °C

Package temperature (IR reflow, peak) 260 °C

Storage temperature, Tstg –55 150 °C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating

Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) Input mode or I2C mode.

(3) Output mode except for I2C mode.

6.2 ESD Ratings

VALUE UNIT

Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±3000

V(ESD) Electrostatic discharge V

Charged-device model (CDM), per JEDEC specification JESD22- ±1500

C101(2)

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

MIN NOM MAX UNIT

VDD Digital supply voltage 3.0 3.3 3.6 V

VCC1

VCC2L Analog Supply Voltage 4.7525 5 5.25 V

VCC2R

Operating Temperature –25 85 °C

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

6.4 Thermal Information

PCM1795

THERMAL METRIC(1) DB (SSOP) UNIT

28 PINS

RθJA Junction-to-ambient thermal resistance 70.3

RθJC(top) Junction-to-case (top) thermal resistance 28.3

RθJB Junction-to-board thermal resistance 31.5 °C/W

ψJT Junction-to-top characterization parameter 2.9

ψJB Junction-to-board characterization parameter 31.1

RθJC(bot) Junction-to-case (bottom) thermal resistance —

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report (SPRA953).

6.5 Electrical Characteristics

All specifications at TA= +25°C, VCC1 = VCC2L = VCC2R = 5 V, VDD = 3.3 V, fS= 48 kHz, system clock = 256 fS, and 32-bit

data, unless otherwise noted.

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

RESOLUTION

Resolution 32 Bits

DATA FORMAT (PCM Mode)

Audio data interface format Standard, I2S, left-justified

Audio data bit length 16-, 24-, 32-bit selectable

Audio data format MSB first, twos complement

fSSampling frequency 10 200 kHz

System clock frequency 128, 192, 256, 384, 512, 768 fS

DATA FORMAT (DSD Mode)

Audio data interface format DSD (direct stream digital)

Audio data bit length 1 Bit

fSSampling frequency 2.8224 MHz

System clock frequency 2.8224 11.2986 MHz

DIGITAL INPUT/OUTPUT

Logic family TTL compatible

VIH 2 VDC

Input logic level

VIL 0.8 VDC

IIH VIN = VDD 10 μA

Input logic current

IIL VIN = 0 V –10 μA

VOH IOH = –2 mA 2.4 VDC

Output logic level

VOL IOL = 2 mA 0.4 VDC

DYNAMIC PERFORMANCE (PCM MODE)(1)(2)

fS= 48 kHz 0.0005% 0.001%

THD+N at VOUT = 0 dB fS= 96 kHz 0.001%

fS= 192 kHz 0.0015%

EIAJ, A-weighted, fS= 48 kHz 120 123

Dynamic range EIAJ, A-weighted, fS= 96 kHz 123 dB

EIAJ, A-weighted, fS= 192 kHz 123

(1) Filter condition:

THD+N: 20-Hz high-pass filter (HPF), 20-kHz AES17 low-pass filter (LPF)

Dynamic range: 20-Hz HPF, 20-kHz AES17 LPF, A-weighted

Signal-to-noise ratio: 20-Hz HPF, 20-kHz AES17 LPF, A-weighted

Channel separation: 20-Hz HPF, 20-kHz AES17 LPF

Analog performance specifications are measured using the System Two™ Cascade audio measurement system by Audio Precision™ in

the averaging mode.

(2) Dynamic performance and dc accuracy are specified at the output of the post-amplifier as shown in Figure 53.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Electrical Characteristics (continued)

All specifications at TA= +25°C, VCC1 = VCC2L = VCC2R = 5 V, VDD = 3.3 V, fS= 48 kHz, system clock = 256 fS, and 32-bit

data, unless otherwise noted.

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

EIAJ, A-weighted, fS= 48 kHz 120 123

Signal-to-noise ratio EIAJ, A-weighted, fS= 96 kHz 123 dB

EIAJ, A-weighted, fS= 192 kHz 123

fS= 48 kHz 116 119

Channel separation fS= 96 kHz 118 dB

fS= 192 kHz 117

Level linearity error VOUT = –120 dB ±1 dB

DYNAMIC PERFORMANCE (MONO MODE)(1)(2)(3)

fS= 48 kHz 0.0005%

THD+N at VOUT = 0 dB fS= 96 kHz 0.001%

fS= 192 kHz 0.0015%

EIAJ, A-weighted, fS= 48 kHz 126

Dynamic range EIAJ, A-weighted, fS= 96 kHz 126 dB

EIAJ, A-weighted, fS= 192 kHz 126

EIAJ, A-weighted, fS= 48 kHz 126

Signal-to-noise ratio EIAJ, A-weighted, fS= 96 kHz 126 dB

EIAJ, A-weighted, fS= 192 kHz 126

DSD MODE DYNAMIC PERFORMANCE (44.1 kHz, 64 fS)(1)(4)

THD+N at FS 2 V rms 0.0007%

Dynamic range –60 dB, EIAJ, A-weighted 122 dB

Signal-to-noise ratio EIAJ, A-weighted 122 dB

ANALOG OUTPUT

Gain error –7 ±2 7 % of FSR

Gain mismatch, channel-to-channel –3 ±0.5 3 % of FSR

Bipolar zero error At BPZ –2 ±0.5 2 % of FSR

Output current Full-scale (0 dB) 4 mAPP

Center current At BPZ –3.5 mA

DIGITAL FILTER PERFORMANCE

De-emphasis error ±0.1 dB

(3) Dynamic performance and dc accuracy are specified at the output of the measurement circuit as shown in Figure 55.

(4) Dynamic performance and dc accuracy are specified at the output of the post-amplifier as shown in Figure 54.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Electrical Characteristics (continued)

All specifications at TA= +25°C, VCC1 = VCC2L = VCC2R = 5 V, VDD = 3.3 V, fS= 48 kHz, system clock = 256 fS, and 32-bit

data, unless otherwise noted.

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

FILTER CHARACTERISTICS–1: SHARP ROLL-OFF

±0.0002 dB 0.454

Passband fS

–3 dB 0.49

Stop band 0.546 fS

Passband ripple ±0.0002 dB

Stop-band attenuation Stop band = 0.546 fS–98 dB

Delay time 38/fSs

FILTER CHARACTERISTICS–2: SLOW ROLL-OFF

±0.001 dB 0.21

Passband fS

–3 dB 0.448

Stop band 0.79 fS

Passband ripple ±0.001 dB

Stop-band attenuation Stop band = 0.732 fS–80 dB

Delay time 38/fSs

POWER-SUPPLY REQUIREMENTS

VDD 3 3.3 3.6 VDC

VCC1Voltage range

VCC2L 4.75 5 5.25 VDC

VCC2R

fS= 48 kHz 6 8

IDD fS= 96 kHz 11

fS= 192 kHz 21

Supply current(5) mA

fS= 44.1 kHz 18 23

ICC fS= 96 kHz 19

fS= 192 kHz 20

fS= 48 kHz 110 141 mW

Power dissipation(5) fS= 96 kHz 131

fS= 192 kHz 166

TEMPERATURE RANGE

Operating temperature –25 +85 °C

(5) Input is bipolar zero (BPZ) data.

Product Folder Links: PCM1795

SDA

SCL

t(BUF) t(D-SU)

t(D-HD)

Start

t(LOW)

t(S-HD)

t(SCL-F)

t(SCL-R)

t(HI)

RepeatedStart

t(RS-SU)

t(RS-HD)

t(SDA-F)

t(SDA-R) t(P-SU)

Stop

t(SP)

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

6.6 Timing Requirements

MIN MAX UNIT

Standard 100

f(SCL) SCL clock frequency kHz

Fast 400

Standard 4.7

t(BUF) Bus free time between stop and start conditions μs

Fast 1.3

Standard 4.7

t(LOW) Low period of the SCL clock μs

Fast 1.3

Standard 4 μs

t(HI) High period of the SCL clock Fast 600 ns

Standard 4.7 μs

t(RS-SU) Setup time for (repeated) start condition Fast 600 ns

t(S-HD) Standard 4 μs

Hold time for (repeated) start condition

t(RS-HD) Fast 600 ns

Standard 250

t(D-SU) Data setup time ns

Fast 100

Standard 0 900

t(D-HD) Data hold time ns

Fast 0 900

Standard 20 + 0.1 CB1000

t(SCL-R) Rise time of SCL signal ns

Fast 20 + 0.1 CB300

Standard 20 + 0.1 CB1000

Rise time of SCL signal after a repeated start condition

t(SCL-R1) ns

and after an acknowledge bit Fast 20 + 0.1 CB300

Standard 20 + 0.1 CB1000

t(SCL-F) Fall time of SCL signal ns

Fast 20 + 0.1 CB300

Standard 20 + 0.1 CB1000

t(SDA-R) Rise time of SDA signal ns

Fast 20 + 0.1 CB300

Standard 20 + 0.1 CB1000

t(SDA-F) Fall time of SDA signal ns

Fast 20 + 0.1 CB300

Standard 4 μs

t(P-SU) Setup time for stop condition Fast 600 ns

C(B) Capacitive load for SDA and SCL line 400 pF

t(SP) Pulse duration of suppressed spike Fast 50 ns

VNH Noise margin at high level for each connected device (including hysteresis) 0.2 VDD V

Figure 1. Timing Definition on the I2C Bus

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS Ampmune ma)

100

120

140

160

Amplitude(dB)

Frequency( f )´S

0 2 4

1 3

FrequencyResponse

SlowRoll-Off

Amplitude(dB)

Frequency( f )´S

0 0.2 0.6

0.1 0.3 0.4 0.5

TransitionCharacteristics

SlowRoll-Off

100

120

140

160

Amplitude(dB)

Frequency( f )´S

0 2 4

1 3

FrequencyResponse

SharpRoll-Off

0.0005

0.0004

0.0003

0.0002

0.0001

0.0002

0.0003

0.0004

0.0005

Amplitude(dB)

Frequency( f )´S

0 0.2 0.5

0.1 0.3 0.4

PassbandRipple

SharpRoll-Off

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

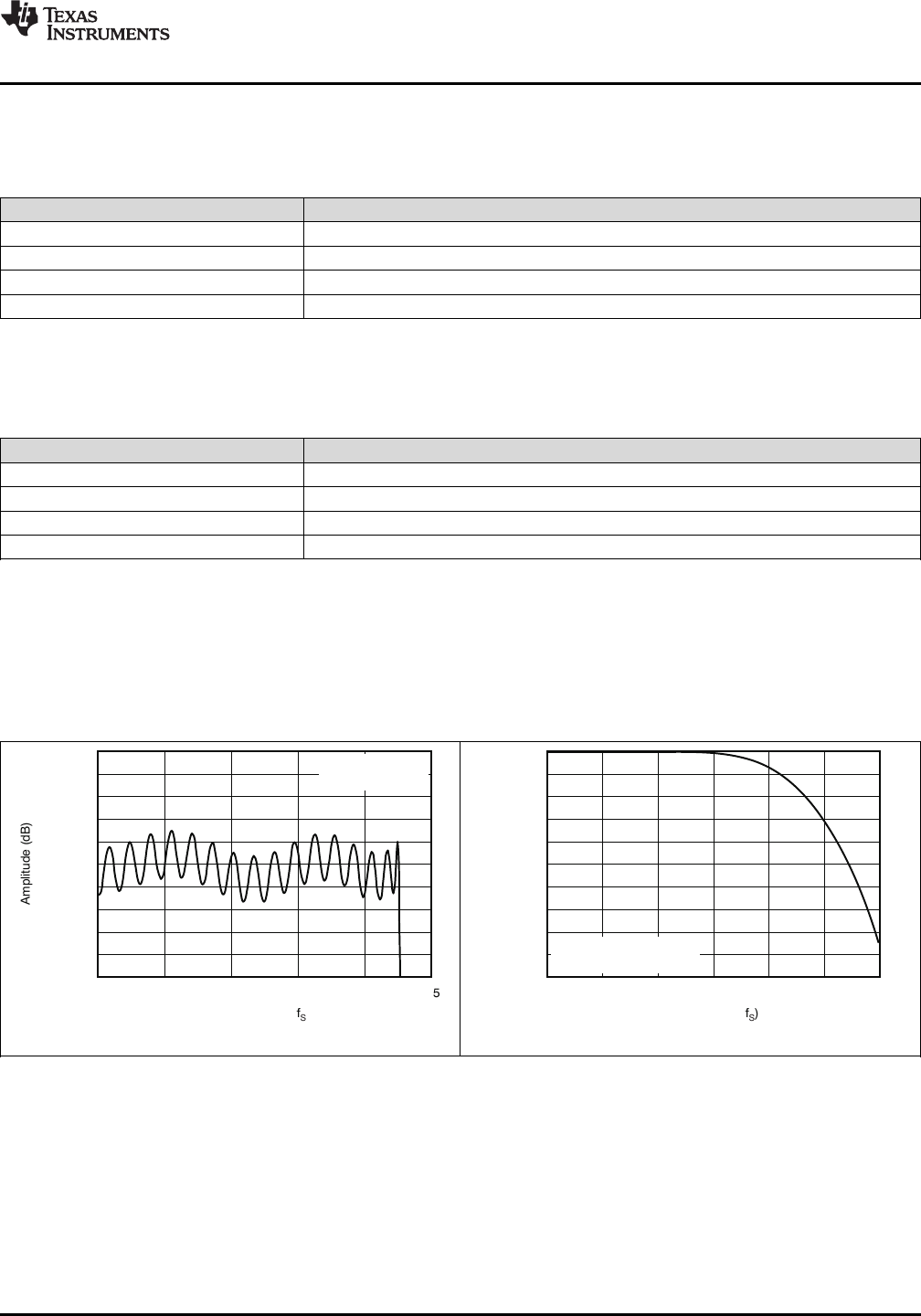

6.7 Typical Characteristics

6.7.1 Digital Filter

Figure 2. Amplitude vs Frequency Figure 3. Amplitude vs Frequency

Figure 4. Amplitude vs Frequency Figure 5. Amplitude vs Frequency

Product Folder Links: PCM1795

*9 TEXAS INSTRUMENTS as Eﬂ mmmiswmn as Eﬂ mmmiswmn

De-EmphasisLevel(dB)

Frequency(kHz)

0 4 22

2 6 8 10 12

f =48kHz

14 16 18 20

0.5

0.4

0.3

0.2

0.1

0.2

0.3

0.4

0.5

De-EmphasisError(dB)

Frequency(kHz)

0 4 22

2 6 8 10 12

f =48kHz

14 16 18 20

De-EmphasisLevel(dB)

Frequency(kHz)

0 4 20

2 6 8 10 12

f =44.1kHz

14 16 18

0.5

0.4

0.3

0.2

0.1

0.2

0.3

0.4

0.5

De-EmphasisError(dB)

Frequency(kHz)

0 4 20

2 6 8 10 12

f =44.1kHz

14 16 18

De-EmphasisLevel(dB)

Frequency(kHz)

0 4 14

2 6 8 10 12

f =32kHz

0.5

0.4

0.3

0.2

0.1

0.2

0.3

0.4

0.5

De-EmphasisError(dB)

Frequency(kHz)

0 4 14

2 6 8 10 12

f =32kHz

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

6.7.2 Digital Filter: De-Emphasis Filter

Figure 6. De-Emphasis Level vs Frequency Figure 7. De-Emphasis Error vs Frequency

Figure 8. De-Emphasis Level vs Frequency Figure 9. De-Emphasis Error vs Frequency

Figure 10. De-Emphasis Level vs Frequency Figure 11. De-Emphasis Error vs Frequency

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

126

124

122

120

118

116

Signal-to-NoiseRatio(dB)

SupplyVoltage(V)

4.50 5.00 5.50

4.75 5.25

f =48kHz

f =192kHz

f =96kHz

122

120

118

116

114

112

ChannelSeparation(dB)

SupplyVoltage(V)

4.50 5.00 5.50

4.75 5.25

f =48kHz

Sf =192kHz

f =96kHz

0.01

0.001

0.0001

TotalHarmonicDistortion+Noise(%)

SupplyVoltage(V)

4.50 5.00 5.50

4.75 5.25

f =48kHz

f =192kHz

Sf =96kHz

126

124

122

120

118

116

DynamicRange(dB)

SupplyVoltage(V)

4.50 5.00 5.50

4.75 5.25

f =48kHz

f =192kHz

Sf =96kHz

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

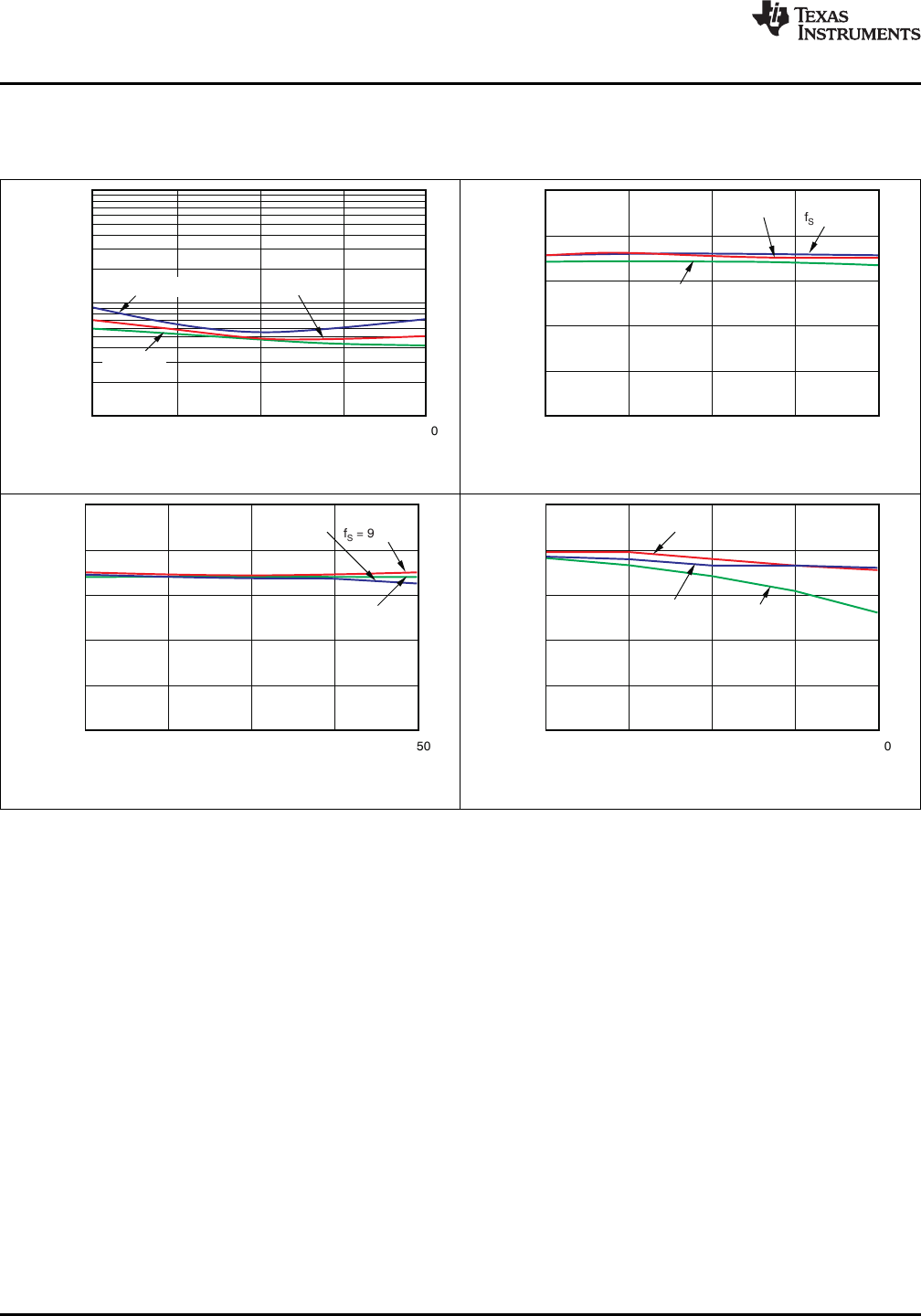

6.7.3 Analog Dynamic Performance: Supply Voltage Characteristics

PCM mode, TA= +25°C, and VDD = 3.3 V; measured with circuit shown in Figure 53, unless otherwise noted.

Figure 12. THD+N vs Supply Voltage Figure 13. Dynamic Range vs Supply Voltage

Figure 14. SNR vs Supply Voltage Figure 15. Channel Separation vs Supply Voltage

Product Folder Links: PCM1795

*9 TEXAS INSTRUMENTS $1 $52 4 {9:223 295% ES °c

100

120

140

160

Amplitude(dB)

Frequency(kHz)

0 4 20

2 6

-60-dBOutputSpectrum

BW=20kHz

PCMMode

f =48kHz

32768Point8Average

T =+25 C

V =3.3V

V =5V

8 10 12 14 16 18

100

120

140

160

Amplitude(dB)

Frequency(kHz)

0 20 100

10 30

-60-dBOutputSpectrum

BW=100kHz

PCMMode

f =96kHz

32768Point8Average

T =+25 C

V =3.3V

V =5V

40 50 60 70 80 90

126

124

122

120

118

116

Signal-to-NoiseRatio(dB)

Free-AirTemperature( C)°

-50 0 100

-25 25 50 75

f =48kHz

f =192kHz

f =96kHz

122

120

118

116

114

112

ChannelSeparation(dB)

Free-AirTemperature( C)°

-50 0 100

-25 25 50 75

f =48kHz

f =192kHz

f =96kHz

0.01

0.001

0.0001

TotalHarmonicDistortion+Noise(%)

Free-AirTemperature( C)°

-50 0 100

-25 25 50 75

f =48kHz

f =192kHz

f =96kHz

126

124

122

120

118

116

DynamicRange(dB)

Free-AirTemperature( C)°

-50 0 100

-25 25 50 75

f =48kHz

Sf =192kHz

f =96kHz

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

6.7.4 Analog Dynamic Performance: Temperature Characteristics

PCM mode, VDD = 3.3 V, and VCC = 5 V; measured with circuit shown in Figure 53, unless otherwise noted.

Figure 16. THD+N vs Free-Air Temperature Figure 17. Dynamic Range vs Free-Air Temperature

Figure 18. SNR vs Free-Air Temperature Figure 19. Channel Separation vs Free-Air Temperature

Figure 20. Amplitude vs Frequency Figure 21. Amplitude vs Frequency

(Measurement Circuit: Figure 53) (Measurement Circuit: Figure 53)

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

0.1

0.01

0.001

0.0001

TotalHarmonicDistortion+Noise(%)

InputLevel(dBFS)

-90 -70 0

-80 -60

PCMMode

f =48kHz

T =+25 C

V =3.3V

V =5V

-50 -40 -30 -20 -10

100

120

140

160

Amplitude(dB)

Frequency(kHz)

0 4 20

2 6

60-dBOutputSpectrum

DSDMode(FIR-2)

32768Point8Average

T =+25 C

V =3.3V

V =5V

8 10 12 14 16 18

-120

124

128

132

136

140

144

148

152

156

160

Amplitude(dB)

Frequency(Hz)

100 10k

1k

144-dBOutputSpectrum

BW=20kHz

PCMMode

f =48kHz

32768Point8Average

T =+25 C

V =3.3V

V =5V

-120

124

128

132

136

140

144

148

152

156

160

Amplitude(dB)

Frequency(Hz)

100 10k

1k

150-dBOutputSpectrum

BW=20kHz

PCMMode

f =48kHz

32768Point8Average

T =+25 C

V =3.3V

V =5V

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Analog Dynamic Performance: Temperature Characteristics (continued)

Figure 22. Amplitude vs Frequency Figure 23. Amplitude vs Frequency

(Measurement Circuit: Figure 53) (Measurement Circuit: Figure 53)

Figure 24. THD+N vs Input Level Figure 25. Amplitude vs Frequency

(Measurement Circuit: Figure 53) (Measurement Circuit: Figure 54)

Product Folder Links: PCM1795

‘5‘ TEXAS INSTRUMENTS \ﬂ/\’\ H \I /\A // I /\’\/\/\/

Gain(dB)

Frequency(kHz)

0 100 200

50 150

DSDFilter-3

LowBandwidth

Gain(dB)

Frequency(Hz)

0 1M 1.5M

500k

DSDFilter-3

HighBandwidth

f =85kHz

Gain= 1.5dB

Gain(dB)

Frequency(kHz)

0 100 200

50 150

DSDFilter-2

LowBandwidth

Gain(dB)

Frequency(Hz)

0 1M 1.5M

500k

DSDFilter-2

HighBandwidth

f =90kHz

Gain=0.3dB

Gain(dB)

Frequency(kHz)

0 100 200

50 150

DSDFilter-1

LowBandwidth

Gain(dB)

Frequency(Hz)

0 1M 1.5M

500k

DSDFilter-1

HighBandwidth

f =185kHz

Gain= 6.6dB

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

6.7.5 Analog FIR Filter performance in DSD Mode

All specifications at DBCK = 2.8224 MHz (44.1 kHz × 64 fS), and 50% modulation DSD data input, unless

otherwise noted.

Figure 26. Gain vs Frequency Figure 27. Gain vs Frequency (1)

Figure 28. Gain vs Frequency Figure 29. Gain vs Frequency

Figure 30. Gain vs Frequency Figure 31. Gain vs Frequency

(1) This gain is in comparison to PCM 0 dB, when the DSD input signal efficiency is 50%.

Product Folder Links: PCM1795

‘5‘ TEXAS INSTRUMENTS

Gain(dB)

Frequency(kHz)

0 100 200

50 150

DSDFilter-4

LowBandwidth

Gain(dB)

Frequency(Hz)

0 1M 1.5M

500k

DSDFilter-4

HighBandwidth

f =94kHz

Gain= 3.3dB

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Analog FIR Filter performance in DSD Mode (continued)

Figure 32. Gain vs Frequency Figure 33. Gain vs Frequency

Product Folder Links: PCM1795

PowerSupply

RST

SCK

Advanced

Segment

DAC

Modulator

IOUTL+

IOUTL-

IOUTR-

IOUTR+

Bias

andVREF

VCOML

VCOMR

AGND2

VDD

VCC1

VCC2L

VCC2R

AGND1

I/V andFilter

Oversampling

DigitalFilter

and

FunctionControl

Audio

DataInput

I/F

LRCK

BCK

DATA

MDO

MDI

AGND3L

AGND3R

DGND

Current

Segment

DAC

IREF

VOUTL

I/VandFilter

VOUTR

Function

ControlI/F

MSEL

Zero

Detect

ZEROL

ZEROR

System

Clock

Manager

Current

Segment

DAC

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

7 Detailed Description

7.1 Overview

The PCM1795 is a 32-bit, 192 kHz, differential current output stereo DAC that comes in a 28-pin SSOP package.

The PCM1795 device is software controlled through I2C or SPI, and utilizes the advanced segment DAC

architecture from TI in order to perform with a Stereo Dynamic Range of 123 dB (126 dB Mono) and SNR of 123

dB (126 dB Mono) with a THD of 0.0005%. The balanced current outputs allow the user to customize the analog

performance externally.

The PCM1795 device will use the SCK input as its system clock and automatically detect the sampling rate of

the digital audio input and has a high tolerance for clock jitter. The PCM1795 device supports both PCM and

DSD formats for audio input along with the TDMA or time-division-multiplexed command and audio-data format.

The internal filter can be bypassed to allow for an external digital filter to be used.

7.2 Functional Block Diagram

Product Folder Links: PCM1795

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ >x< iiiiiiiiiiiiiiiii=""><>xx

DATA

t(BCH)

1.4V

BCK

LRCK

t(BCL) t(LB)

t(BCY)

t(DS) t(DH)

1.4V

t(BL)

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.3 Feature Description

7.3.1 Audio Data Interface

7.3.1.1 Audio Serial Interface

The audio interface port is a three-wire serial port. It includes LRCK (pin 4), BCK (pin 6), and DATA (pin 5). BCK

is the serial audio bit clock, and it is used to clock the serial data present on DATA into the serial shift register of

the audio interface. Serial data are clocked into the PCM1795 on the rising edge of BCK. LRCK is the serial

audio left/right word clock.

The PCM1795 device requires the synchronization of LRCK and the system clock, but does not need a specific

phase relation between LRCK and the system clock.

If the relationship between LRCK and the system clock changes more than ±6 BCK, internal operation is

initialized within 1/fSand analog outputs are forced to the bipolar zero level until resynchronization between

LRCK and the system clock is completed.

7.3.1.2 PCM Audio Data Formats and Timing

The PCM1795 device supports industry-standard audio data formats, including standard right-justified, I2S, and

left-justified. The data formats are illustrated in Figure 35 to Figure 37. Data formats are selected using the

format bits, FMT[2:0], in control register 18. The default data format is 32-bit I2S. All formats require binary twos

complement, MSB-first audio data. Figure 34 and Table 1 show a detailed timing diagram for the serial audio

interface.

Figure 34. Audio Interface Timing

Table 1. Serial Audio Interface Timing Characteristics for Figure 34

MIN MAX UNIT

t(BCY) BCK pulse cycle time 70 ns

t(BCL) BCK pulse duration, low 30 ns

t(BCH) BCK pulse duration, high 30 ns

t(BL) BCK rising edge to LRCK edge 10 ns

t(LB) LRCK edge to BCK rising edge 10 ns

t(DS) DATA setup time 10 ns

t(DH) DATA hold time 10 ns

LRCK clock data 50% ± 2 bit clocks

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS mm 777777 LFLFLFLFLFL 777777 mm ????? LFLFLFLFLFL 777777 mm 11 | 11 77777777 1| 1 1| 77777777 1| \ / || 111 77777777777777 || 111 77777777777777 1| \ / || | 11 77777777777777777777 || | 11 77777777777777777777 || \MSE LSE/ 111mm 777777 mm mm 777777 LFIJ'LHJ'IILmJ'LFLFLI'IJ'I || 77777777777777 | || 11 7777777777777 1 || | MSE LSE/ mm 777777 mfmhrm 77777 mmﬁﬂu || 77777777777777 1 || 11 77777777777777 1 || \ /

1 2 32 211 2 32

LSB

1 2 24 1 2 2423

BCK

LeftChannel

DATA

RightChannel

1/fS

LRCK

AudioDataWord=32-Bit,BCK 64f³S

DATA

AudioDataWord=24-Bit,BCK 48f³S

MSB

LSB

MSB

MSB LSB

1 2 24 1 2 24

BCK

LeftChannel

DATA

RightChannel

1/fS

LRCK

AudioDataWord=24-Bit,BCK 48f³S

23 23

14 15 16 1 2 15 16

MSB LSB

1 2 15 16

22 23 24 1 2 23 24 1 2 23 24

30 31 32 1 31

2 32 1 312 32

BCK

LeftChannel

DATA

RightChannel

1/fS

DATA

LRCK

AudioDataWord=16-Bit,BCK 32f³S

AudioDataWord=24-Bit,BCK 48f³S

AudioDataWord=32-Bit,BCK 64f³S

MSB LSB

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Figure 35. Audio Data Input Format: Standard Data Format (Right-Justified), Left Channel = High, Right

Channel = Low

Figure 36. Audio Data Input Format: Left-Justified Data Format, Left Channel = High, Right Channel =

Low

Figure 37. Audio Data Input Format: I2S Data Format, Left Channel = Low, Right Channel = High

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS ‘0qu ‘mP

OutputCurrent(mA)

OUTPUTCURRENTvsINPUTCODE

I N

OUT

I P

OUT

InputCode(Hex)

80000000( FS)-000000(BPZ) 7FFFFFFF(+FS)

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.3.1.3 External Digital Filter Interface and Timing

The PCM1795 device supports an external digital filter interface that consists of a three- or four-wire

synchronous serial port that allows the use of an external digital filter. External filters include the Texas

Instruments’ DF1704 and DF1706, the Pacific Microsonics PMD200, or a programmable digital signal processor.

In the external DF mode, LRCK (pin 4), BCK (pin 6) and DATA (pin 5) are defined as: WDCK, the word clock;

BCK, the bit clock; and DATA, the monaural data. The external digital filter interface is selected by using the

DFTH bit of control register 20, which functions to bypass the internal digital filter of the PCM1795 device .

When the DFMS bit of control register 19 is set, the PCM1795 device can process stereo data. In this case,

ZEROL (pin 1) and ZEROR (pin 2) are defined as left-channel data and right-channel data input, respectively.

Detailed information for the external digital filter interface mode is provided in Application For External Digital

Filter Interface.

7.3.1.4 Direct Stream Digital (DSD) Format Interface and Timing

The PCM1795 device supports the DSD format interface operation, which includes out-of-band noise filtering

using an internal analog FIR filter. For DSD operation, SCK (pin 7) is redefined as BCK, DATA (pin 5) as DATAL

(left channel audio data), and LRCK (pin 4) as DATAR (right channel audio data). BCK (pin 6) must be forced

low in the DSD mode. The DSD format interface is activated by setting the DSD bit of control register 20.

Detailed information for the DSD mode is provided in Application For DSD Format (DSD Mode) Interface.

7.3.1.5 TDMCA Interface

The PCM1795 device supports the time-division-multiplexed command and audio (TDMCA) data format to

enable control of and communication with a number of external devices over a single serial interface.

Detailed information for the TDMCA format is provided in TDMCA Interface Format.

7.3.1.6 Analog Output

Table 2 and Figure 38 show the relationship between the digital input code and analog output.

Table 2. Analog Output Current and Voltage(1)

PARAMETER 800000 (–FS) 000000 (BPZ) 7FFFFF (+FS)

IOUTN (mA) –1.5 –3.5 –5.5

IOUTP (mA) –5.5 3.5 –1.5

VOUTN (V) –1.23 –2.87 –4.51

VOUTP (V) –4.51 –2.87 –1.23

VOUT (V) –2.91 0 2.91

(1) VOUTN is the output of U1, VOUTP is the output of U2, and VOUT is the output of U3 in the measurement circuit of Figure 53.

Figure 38. Relationship Between Digital Input and Analog Output

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

t(SCKH)

SystemClock

(SCK)

t(SCKL)

2V

0.8V

High

Low

t(SCY)

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

7.4 Device Functional Modes

• SPI Mode is selected by connecting MSEL to DGND. SPI mode uses four signal lines and allows higher

speed full-duplex communication between the host and the PCM1795 device.

• I2C Mode is selected by connecting MSEL to VDD. I2C uses two signal lines for half-duplex communication,

and used in a variety of devices.

• I2S input Mode is selected by default and is controlled by Register 20 bit 5.

• DSD input Mode is selected by setting Register 20 bit 5 high.

• TDMCA Mode is enabled when the PCM1795 device receives an LRCK signal with a pulse duration of two

BCK clocks.

7.5 Programming

7.5.1 System Clock and Reset Functions

7.5.1.1 System Clock Input

The PCM1795 requires a system clock to operate the digital interpolation filters and advanced segment DAC

modulators. The system clock is applied at the SCK input (pin 7). The PCM1795 has a system clock detection

circuit that automatically senses the frequency at which the system clock is operating. Table 3 shows examples

of system clock frequencies for common audio sampling rates. If the oversampling rate of the delta-sigma (ΔΣ)

modulator is selected as 128 fS, the system clock frequency is required to be greater than 256 fS.

Figure 39 and Table 4 show the timing requirements for the system clock input. For optimal performance, it is

important to use a clock source with low phase jitter and noise. The Texas Instruments PLL1700 family of

multiclock generators is an excellent choice to provide the PCM1795 system clock.

Table 3. System Clock Rates for Common Audio Sampling Frequencies

SYSTEM CLOCK FREQUENCY (fSCK) (MHz)

SAMPLING FREQUENCY

(kHz) 128 fS192 fS256 fS384 fS512 fS768 fS

32 4.096(1) 6.144(1) 8.192 12.288 16.384 24.576

44.1 5.6488(1) 8.4672 11.2896 16.9344 22.5792 33.8688

48 6.144(1) 9.216 12.288 18.432 24.576 36.864

96 12.288 18.432 24.576 36.864 49.152(1) 73.728(1)

192 24.576 36.864 49.152(1) 73.728(1) X(2) X(2)

(1) This system clock rate is not supported in I2C fast mode.

(2) This system clock rate is not supported for the given sampling frequency.

Figure 39. System Clock Input Timing

Table 4. System Clock Input Timing Characteristics for Figure 39

MIN MAX UNIT

t(SCY) System clock pulse cycle time 13 ns

t(SCKH) System clock pulse duration, high 0.4t(SCY) ns

t(SCKL) System clock pulse duration, low 0.4t(SCY) ns

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS _|HHHH ””””””””” NW NW ”””””

Reset Reset Removal

1024SystemClocks

InternalReset

SystemClock

RST (Pin14)

t(RST)

1.4V

Reset

1024SystemClocks

VDD

2.4V(Max)

2V(Typ)

1.6V(Min)

InternalReset

SystemClock

ResetRemoval

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.5.1.2 Power-On and External Reset Functions

The PCM1795 includes a power-on reset function, as shown in Figure 40. With VDD > 2 V, the power-on reset

function is enabled. The initialization sequence requires 1024 system clocks from the time VDD > 2 V. After the

initialization period, the PCM1795 is set to its default reset state, as described in Mode Control Registers.

The PCM1795 also includes an external reset capability using the RST input (pin 14). This feature allows an

external controller or master reset circuit to force the PCM1795 to initialize to the default reset state.

Figure 41 and Table 5 show the external reset operation and timing. The RST pin is set to logic 0 for a minimum

of 20 ns. The RST pin is then set to a logic 1 state, thus starting the initialization sequence that requires 1024

system clock periods. The external reset is especially useful in applications where there is a delay between the

PCM1795 power-up and system clock activation.

Figure 40. Power-On Reset Timing

Figure 41. External Reset Timing

Table 5. External Reset Timing Characteristics for Figure 41

MIN MAX UNIT

t(RST) Reset pulse duration, low 20 ns

7.5.2 Function Descriptions

7.5.2.1 Zero Detect

The PCM1795 has a zero-detect function. When the PCM1795 detects the zero conditions as shown in Table 6,

the PCM1795 sets ZEROL (pin 1) and ZEROR (pin 2) high.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

MSB LSB

R/WIDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 D7 D6 D5 D4 D3 D2 D1 D0

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Table 6. Zero Conditions

MODE DETECTING CONDITION AND TIME

PCM DATA is continuously low for 1024 LRCKs.

External DF mode DATA is continuously low for 1024 WDCKs.

There are an equal number of 1s and 0s in every 8 bits of DSD input data for 23

DZ0 ms.

DSD

DZ1 The input data are continuously 1001 0110 for 23 ms.

7.5.3 Serial Control Interface

The PCM1795 supports both SPI and I2C interfaces that set the mode control registers; see Table 10. The serial

control interface is selected by MSEL (pin 3); SPI is activated when MSEL is set low, and I2C is activated when

MSEL is set high.

7.5.3.1 SPI Interface

The SPI interface is a four-wire synchronous serial port that operates asynchronously to the serial audio interface

and the system clock (SCK). The serial control interface is used to program and read the on-chip mode registers.

The control interface includes MDO (pin 13), MDI (pin 11), MC (pin 12), and MS (pin 10). MDO is the serial data

output, used to read back the values of the mode registers; MDI is the serial data input, used to program the

mode registers; MC is the serial bit clock, used to shift data in and out of the control port; and MS is the mode

control enable, used to enable the internal mode register access.

7.5.3.2 Register Read/Write Operation

All read/write operations for the serial control port use 16-bit data words. Figure 42 shows the control data word

format. The most significant bit (MSB) is the read/write (R/W) bit. For write operations, the R/W bit must be set to

'0'. For read operations, the R/W bit must be set to '1'. There are 7 bits, labeled IDX[6:0], that hold the register

index (or address) for the read and write operations. The least significant 8 bits, D[7:0], contain the data to be

written to, or the data that was read from, and the register specified by IDX[6:0].

Figure 43 shows the functional timing diagram for writing or reading the serial control port. MS is held at a logic 1

state until a register must be written to or read from. To start the register write or read cycle, MS is set to logic 0.

Sixteen clocks are then provided on MC, corresponding to the 16 bits of the control data word on MDI and

readback data on MDO. After the eighth clock cycle has completed, the data from the indexed-mode control

latched into the indexed-mode control register during the write operation. To write or read subsequent data, MS

must be set to '1' once.

Figure 42. Control Data Word Format for MDI

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS ——I l— W

t(MCH)

1.4V

t(MSS)

LSB

1.4V

t(MCL)

t(MCY)

t(MDS)

MDI

t(MOS)

50%ofVDD

MDO

t(MHH)

t(MSH)

t(MDH)

HighImpedance

WhenReadModeisInstructed

R/WA6

MDI

MDO

A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0

D7 D6 D5 D4 D3 D2 D1 D0

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

NOTE: Bit 15 is used for selection of write or read. Setting R/W = 0 indicates a write, while R/W = 1 indicates a read.

Bits 14–8 are used for the register address. Bits 7–0 are used for register data.

Figure 43. Serial Control Format

Figure 44. Control Interface Timing

Table 7. Control Interface Timing Characteristics for Figure 44

MIN MAX UNIT

t(MCY) MC pulse cycle time 100 ns

t(MCL) MC low-level time 40 ns

t(MCH) MC high-level time 40 ns

t(MHH) MS high-level time 80 ns

t(MSS) MS falling edge to MC rising edge 15 ns

t(MSH) MS hold time(1) 15 ns

t(MDH) MDI hold time 15 ns

t(MDS) MDI setup time 15 ns

t(MOS) MC falling edge to MDO stable 30 ns

(1) MC rising edge for LSB to MS rising edge.

Product Folder Links: PCM1795

{L} TEXAS INSTRUMENTS

SDA

SCL St

Start

Condition

17 8 18 9 18 9 9 Sp

Stop

Condition

SlaveAddress ACK DATA ACK DATA ACK ACKR/W

ReadOperation

Transmitter MM M S S MSM M M

DataType St SlaveAddress RACK DATA ACK DATA ACK NACK Sp

WriteOperation

Transmitter M M M SMSMS S M

DataType St SlaveAddress WACK DATA ACK DATA ACK ACK Sp

R/ :ReadOperationif1;Otherwise,WriteOperation

ACK:AcknowledgmentofaByteif0

NACK:NotAcknowledgedif1

DATA:8Bits(Byte)

M:MasterDevice

S:SlaveDevice

St:StartCondition

Sp:StopCondition

R:Read

:Write

ACK:Acknowledge

NACK:NotAcknowledged

MSB LSB

10 0 1 1 ADR1 ADR0 R/W

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

7.5.4 I2C Interface

The PCM1795 supports the I2C serial bus and the data transmission protocol for standard and fast mode as a

slave device. This protocol is explained in the I2C specification 2.0.

In I2C mode, the control terminals are changed as described in Table 8.

Table 8. Control Terminals

TERMINAL NAME TDMCA NAME PROPERTY DESCRIPTION

MS ADR0 Input I2C address 0

MDI ADR1 Input I2C address 1

MC SCL Input I2C clock

MDO SDA Input/output I2C data

7.5.4.1 Slave Address

The PCM1795 has 7 bits for its own slave address, as shown in Figure 45. The first 5 bits (MSBs) of the slave

address are factory preset to 10011. The next 2 bits of the address byte are the device select bits that can be

user-defined by the ADR1 and ADR0 terminals. A maximum of four PCM1795 devicess can be connected on the

same bus at one time. Each PCM1795 responds when it receives its own slave address.

Figure 45. Slave Address

7.5.4.2 Packet Protocol

A master device must control packet protocol that consists of a start condition, slave address, read/write bit, data

if write or acknowledge if read, and stop condition. The PCM1795 supports only slave receivers and slave

transmitters.

Figure 46. Basic I2C Framework

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS ‘ m

SCL

SDA

Noise

Data Type Data

Transmitter

St ACK ACK ACK

ACK

NACK

Sr R

M M M S M SM M M S S M

SlaveAddress WRegisterAddress SlaveAddress

M:MasterDevice

S:SlaveDevice

St:StartCondition

Sr:RepeatedStartCondition

Sp:StopCondition

R:Read

:Write

ACK:Acknowledge

NACK:NotAcknowledged

Data Type WriteData2

Transmitter

St ACK ACK ACK

ACK

NACK

M M M S M SM S M S

SlaveAddress WRegisterAddress WriteData1

M:MasterDevice

S:SlaveDevice

St:StartCondition

Sp:StopCondition

ACK:Acknowledge

NACK:NotAcknowledged

:WriteW

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.5.4.3 Write Register

A master can write to any PCM1795 registers using single or multiple accesses. The master sends a PCM1795

slave address with a write bit, a register address, and the data. If multiple access is required, the address is that

of the starting register, followed by the data to be transferred. When the data are received properly, the index

undefined registers are accessed, the PCM1795 does not send an acknowledgment. Figure 47 shows a diagram

of the write operation.

Figure 47. Write Operation

7.5.4.4 Read Register

A master can read the PCM1795 register. The value of the register address is stored in an indirect index register

in advance. The master sends a PCM1795 slave address with a read bit after storing the register address. Then

the PCM1795 transfers the data that the index register points to. When the data are transferred during a multiple

access, the index register is incremented by '1' automatically. (When first going into read mode immediately

following a write, the index register is not incremented. The master can read the register that was previously

written.) When the index register reaches 0x7F, the next value is 0x00. The PCM1795 outputs some data when

the index register is 0x10 to 0x1F, even if it is not defined in Table 10.Figure 48 shows a diagram of the read

operation.

Figure 48. Read Operation

7.5.4.5 Noise Suppression

The PCM1795 incorporates noise suppression using the system clock (SCK). However, there must be no more

than two noise spikes in 600 ns. The noise suppression works for SCK frequencies between 8 MHz and 40 MHz

in fast mode. However, it works incorrectly under the following conditions:

Case 1:

1. t(SCK) > 120 ns (t(SCK): period of SCK)

2. t(HI) + t(D–HD) < t(SCK) × 5

3. Spike noise exists on the first half of the SCL high pulse.

4. Spike noise exists on the SDA high pulse just before SDA goes low.

Figure 49. Case 1

When these conditions occur at the same time, the data are recognized as low.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

SCL

SDA

Noise

SCL

SDA

Noise

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Case 2:

1. t(SCK) > 120 ns

2. t(S–HD) or t(RS–HD) < t(SCK) × 5

3. Spike noise exists on both SCL and SDA during the hold time.

Figure 50. Case 2

When these conditions occur at the same time, the PCM1795 fails to detect a start condition.

Case 3:

1. t(SCK) < 50 ns

2. t(SP) > t(SCK)

3. Spike noise exists on SCL just after SCL goes low.

4. Spike noise exists on SDA just before SCL goes low.

Figure 51. Case 3

When these conditions occur at the same time, the PCM1795 erroneously detects a start or stop condition.

7.6 Register Maps

7.6.1 Mode Control Registers

7.6.1.1 User-Programmable Mode Controls

The PCM1795 device includes a number of user-programmable functions that are accessed via mode control

registers. The registers are programmed using the serial control interface, as previously discussed in SPI

Interface and I2C Interface.Table 9 lists the available mode-control functions, along with the default reset

conditions and associated register index.

Table 9. User-Programmable Function Controls

FUNCTION DEFAULT REGISTER BIT PCM DSD BYPASS

Digital attenuation control Register 16 ATL[7:0] (for left channel)

0 dB Yes No No

0 dB to –120 dB and mute, 0.5-dB step Register 17 ATR[7:0] (for right channel)

Attenuation load control Attenuation disabled Register 18 ATLD Yes No No

Disabled, enabled

Input audio data format selection

16-, 20-, 32-bit standard (right-justified) Register 18 FMT[2:0] Yes No Yes

24-bit I2S format

format

24-bit MSB-first left-justified format

16-/32-bit I2S format

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Table 9. User-Programmable Function Controls (continued)

FUNCTION DEFAULT REGISTER BIT PCM DSD BYPASS

Sampling rate selection for de-emphasis De-emphasis disabled Register 18 DMF[1:0] Yes Yes(1) No

Disabled, 44.1 kHz, 48 kHz, 32 kHz

De-emphasis control De-emphasis disabled Register 18 DME Yes No No

Disabled, enabled

Soft mute control Mute disabled Register 18 MUTE Yes No No

Soft mute disabled, enabled

Output phase reversal Normal Register 19 REV Yes Yes Yes

Normal, reverse

Attenuation speed selection ×1 fSRegister 19 ATS[1:0] Yes No No

×1fS, ×(1/2)fS, ×(1/4)fS, ×(1/8)fS

DAC operation control DAC operation enabled Register 19 OPE Yes Yes Yes

Enabled, disabled

Stereo DF bypass mode select Monaural Register 19 DFMS Yes No Yes

Monaural, stereo

Digital filter roll-off selection Sharp roll-off Register 19 FLT Yes No No

Sharp roll-off, slow roll-off

Infinite zero mute control Disabled Register 19 INZD Yes No Yes

Disabled, enabled

System reset control Normal operation Register 20 SRST Yes Yes Yes

Reset operation, normal operation

DSD interface mode control Disabled Register 20 DSD Yes Yes No

DSD enabled, disabled

Digital-filter bypass control DF enabled Register 20 DFTH Yes No Yes

DF enabled, DF bypass

Monaural mode selection Stereo Register 20 MONO Yes Yes Yes

Stereo, monaural

Channel selection for monaural mode data Left channel Register 20 CHSL Yes Yes Yes

Left channel, Right channel

ΔΣ oversampling rate selection ×64 fSRegister 20 OS[1:0] Yes Yes(2) Yes

×64 fS, ×128 fS, ×32 fS

PCM zero output enable Enabled Register 21 PCMZ Yes No Yes

DSD zero output enable Disabled Register 21 DZ[1:0] Yes Yes No

FUNCTION AVAILABLE ONLY FOR READ

Zero detection flag Not zero = 0 ZFGL (for left channel)

Not zero, zero detected Zero detected = 1 ZFGR (for right channel)

Device ID (at TDMCA) — Register 23 ID[4:0] Yes No No

(1) When in DSD mode, DMF[1:0] is defined as DSD filter (analog FIR) performance selection.

(2) When in DSD mode, OS[1:0] is defined as DSD filter (analog FIR) operating rate selection.

7.6.1.2 Register Map

The mode control register map is shown in Table 10. Registers 16 to 21 include an R/W bit that determines

whether a register read (R/W = 1) or write (R/W = 0) operation is performed. Registers 22 and 23 are read-only.

Table 10. Mode Control Register Map

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Table 10. Mode Control Register Map (continued)

7.6.1.3 Register Definitions

7.6.1.3.1 R/W: Read/Write Mode Select

When R/W = 0, a write operation is performed.

When R/W = 1, a read operation is performed.

Default value: 0

7.6.1.3.2 ATx[7:0]: Digital Attenuation Level Setting

These bits are available for read and write.

Default value: 1111 1111b

Each DAC output has a digital attenuator associated with it. The attenuator can be set from 0 dB to –120 dB, in

0.5-dB steps. Alternatively, the attenuator can be set to infinite attenuation (or mute). The attenuation data for

each channel can be set individually. However, the data load control (the ATLD bit of control register 18) is

common to both attenuators. ATLD must be set to '1' in order to change an attenuator setting. The attenuation

level can be set using Equation 1.

Attenuation level (dB) = 0.5 dB × (ATx[7:0]DEC – 255)

where

ATx[7:0]DEC = 0 through 255 (1)

For ATx[7:0]DEC = 0 through 14, the attenuator is set to infinite attenuation. Table 11 lists the attenuation levels

for various settings.

Table 11. Attenuation Levels

ATx[7:0] DECIMAL VALUE ATTENUATION LEVEL SETTING

1111 1111b 255 0 dB, no attenuation (default)

1111 1110b 254 –0.5 dB

1111 1101b 253 –1.0 dB

— — —

0001 0000b 16 –119.5 dB

0000 1111b 15 –120.0 dB

0000 1110b 14 Mute

— — —

0000 0000b 0 Mute

7.6.1.3.3 R/W: Read/Write Mode Select

When R/W = 0, a write operation is performed.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

When R/W = 1, a read operation is performed.

Default value: 0

7.6.1.3.4 ATLD: Attenuation Load Control

This bit is available for read and write.

Default value: 0

Table 12. ATLD

ATLD ATTENUATION CONTROL SETTING

ATLD = 0 Attenuation control disabled (default)

ATLD = 1 Attenuation control enabled

The ATLD bit is used to enable loading of the attenuation data contained in registers 16 and 17. When ATLD =

0, the attenuation settings remain at the previously programmed levels, ignoring new data loaded from registers

16 and 17. When ATLD = 1, attenuation data written to registers 16 and 17 is loaded normally.

7.6.1.3.5 FMT[2:0]: Audio Interface Data Format

These bits are available for read and write.

Default value: 101

Table 13. FMT[2:0]

FMT[2:0] AUDIO DATA FORMAT SELECTION

000 16-bit standard format, right-justified data, BCK ≥x32 fS

001 32-bit standard format, right-justified data, BCK ≥x64 fS

010 24-bit standard format, right-justified data, BCK ≥x48 fS

011 24-bit MSB-first, left-justified format data, BCK ≥x48 fS

100 32-bit I2S format data, BCK ≥x64 fS

101 24-bit I2S format data (default), BCK ≥x48 fS

110 Reserved

111 Reserved

The FMT[2:0] bits are used to select the data format for the serial audio interface.

For the external digital filter interface mode (DFTH mode), this register is operated as shown in Application for

External Digital Filter Interface.

7.6.1.3.6 DMF[1:0]: Sampling Frequency Selection for the De-Emphasis Function

These bits are available for read and write.

Default value: 00

Table 14. DMF[1:0]

DMF[1:0] DE-EMPHASIS SAMPLING FREQUENCY SELECTION

00 Disabled (default)

01 48 kHz

10 44.1 kHz

11 32 kHz

The DMF[1:0] bits are used to select the sampling frequency used by the digital de-emphasis function when it is

enabled by setting the DME bit. The de-emphasis curves are shown in Typical Characteristics.

For the DSD mode, analog FIR filter performance can be selected using this register. A register map and filter

response plots are shown in Application For DSD Format (DSD Mode) Interface.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

7.6.1.3.7 DME: Digital De-Emphasis Control

This bit is available for read and write.

Default value: 0

Table 15. DME

DME DE-EMPHASIS SETTING

DME = 0 De-emphasis disabled (default)

DME = 1 De-emphasis enabled

The DME bit is used to enable or disable the de-emphasis function for both channels.

7.6.1.3.8 MUTE: Soft Mute Control

This bit is available for read and write.

Default value: 0

Table 16. MUTE

MUTE SOFT MUTE SETTING

MUTE = 0 Soft mute disabled (default)

MUTE = 1 Soft mute enabled

The MUTE bit is used to enable or disable the soft mute function for both channels.

Soft mute is operated as a 256-step attenuator. The speed for each step to –∞dB (mute) is determined by the

attenuation rate selected in the ATS register.

7.6.1.3.9 R/W: Read/Write Mode Select

When R/W = 0, a write operation is performed.

When R/W = 1, a read operation is performed.

Default value: 0

7.6.1.3.10 REV: Output Phase Reversal

This bit is available for read and write.

Default value: 0

Table 17. REV

REV OUTPUT SETTING

REV = 0 Normal output (default)

REV = 1 Inverted output

The REV bit is used to invert the output phase for both channels.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.6.1.3.11 ATS[1:0]: Attenuation Rate Select

These bits are available for read and write.

Default value: 00

Table 18. ATS[1:0]

ATS[1:0] ATTENUATION RATE SELECTION

00 Every LRCK (default)

01 LRCK/2

10 LRCK/4

11 LRCK/8

The ATS[1:0] bits are used to select the rate at which the attenuator is decremented/incremented during level

transitions.

7.6.1.3.12 OPE: DAC Operation Control

This bit is available for read and write.

Default value: 0

Table 19. OPE

OPE DAC OPERATION CONTROL

OPE = 0 DAC operation enabled (default)

OPE = 1 DAC operation disabled

The OPE bit is used to enable or disable the analog output for both channels. Disabling the analog outputs

forces them to the bipolar zero level (BPZ) even if audio data are present on the input.

7.6.1.3.13 DFMS: Stereo DF Bypass Mode Select

This bit is available for read and write.

Default value: 0

Table 20. DFMS

DFMS MODE SELECTION

DFMS = 0 Monaural (default)

DFMS = 1 Stereo input enabled

The DFMS bit is used to enable stereo operation in DF bypass mode. In the DF bypass mode, when DFMS is

set to '0', the pin for the input data are DATA (pin 5) only; therefore, the PCM1795 operates as a monaural DAC.

When DFMS is set to '1', the PCM1795 can operate as a stereo DAC with inputs of the left channel and right

channel data on ZEROL (pin 1) and ZEROR (pin 2), respectively.

7.6.1.3.14 FLT: Digital Filter Roll-Off Control

This bit is available for read and write.

Default value: 0

Table 21. FLT

FLT ROLL-OFF CONTROL

FLT = 0 Sharp roll-off (default)

FLT = 1 Slow roll-off

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

The FLT bit is used to select the digital filter roll-off characteristic. The filter responses for these selections are

shown in Typical Characteristics.

7.6.1.3.15 INZD: Infinite Zero Detect Mute Control

This bit is available for read and write.

Default value: 0

Table 22. INZD

INZD INFINITE ZERO DETECT MUTE SETTING

INZD = 0 Infinite zero detect mute disabled (default)

INZD = 1 Infinite zero detect mute enabled

The INZD bit is used to enable or disable the zero detect mute function. Setting INZD to '1' forces muted analog

outputs to hold a bipolar zero level when the PCM1795 detects a zero condition in both channels. The infinite

zero detect mute function is not available in the DSD mode.

7.6.1.3.16 R/W: Read/Write Mode Select

When R/W = 0, a write operation is performed.

When R/W = 1, a read operation is performed.

Default value: 0

7.6.1.3.17 SRST: System Reset Control

This bit is available for write only.

Default value: 0

Table 23. SRST

SRST SYSTEM RESET CONTROL

SRST = 0 Normal operation (default)

SRST = 1 System reset operation (generate one reset pulse)

The SRST bit is used to reset the PCM1795 to the initial system condition.

7.6.1.3.18 DSD: DSD Interface Mode Control

This bit is available for read and write.

Default value: 0

Table 24. DSD

DSD DSD INTERFACE MODE CONTROL

DSD = 0 DSD interface mode disabled (default)

DSD = 1 DSD interface mode enabled

The DSD bit is used to enable or disable the DSD interface mode.

7.6.1.3.19 DFTH: Digital Filter Bypass (or Through Mode) Control

This bit is available for read and write.

Default value: 0

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Table 25. DFTH

DFTH DIGITAL FILTER CONTROL

DFTH = 0 Digital filter enabled (default)

DFTH = 1 Digital filter bypassed for external digital filter

The DFTH bit is used to enable or disable the external digital filter interface mode.

7.6.1.3.20 MONO: Monaural Mode Selection

This bit is available for read and write.

Default value: 0

Table 26. MONO

MONO MODE SELECTION

MONO = 0 Stereo mode (default)

MONO = 1 Monaural mode

The MONO function is used to change operation mode from the normal stereo mode to the monaural mode.

When the monaural mode is selected, both DACs operate in a balanced mode for one channel of audio input

data. Channel selection is available for left-channel or right-channel data, determined by the CHSL bit.

7.6.1.3.21 CHSL: Channel Selection for Monaural Mode

This bit is available for read and write.

Default value: 0

Table 27. CHSL

CHSL CHANNEL SELECTION

CHSL = 0 Left channel selected (default)

CHSL = 1 Right channel selected

This bit is available when MONO = 1.

The CHSL bit selects left-channel or right-channel data to be used in monaural mode.

7.6.1.3.22 OS[1:0]: ΔΣ Oversampling Rate Selection

These bits are available for read and write.

Default value: 00

Table 28. OS[1:0]

OS[1:0] OPERATING SPEED SELECTION

00 64 times fS(default)

01 32 times fS

10 128 times fS

11 Reserved

The OS bits are used to change the oversampling rate of ΔΣ modulation. Use of this function enables the

designer to stabilize the conditions at the post low-pass filter for different sampling rates. As an application

example, programming to set 128 times in 44.1-kHz operation, 64 times in 96-kHz operation, or 32 times in 192-

kHz operation allows the use of only a single type (cut-off frequency) of post low-pass filter. The 128-fS

oversampling rate is not available at sampling rates above 100 kHz. If the 128-fSoversampling rate is selected, a

system clock of more than 256 fSis required.

In DSD mode, these bits are used to select the speed of the bit clock for DSD data coming into the analog FIR

filter.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

7.6.1.3.23 R/W: Read/Write Mode Select

When R/W = 0, a write operation is performed.

When R/W = 1, a read operation is performed.

Default value: 0

7.6.1.3.24 DZ[1:0]: DSD Zero Output Enable

These bits are available for read and write.

Default value: 00

Table 29. DZ[1:0]

DZ[1:0] ZERO OUTPUT ENABLE

00 Disabled (default)

01 Even pattern detect 1 × 96h pattern detect

The DZ bits are used to enable or disable the output zero flags and to select the zero pattern in DSD mode.

7.6.1.3.25 PCMZ: PCM Zero Output Enable

These bits are available for read and write.

Default value: 1

Table 30. PCMZ

PCMZ PCM ZERO OUTPUT SETTING

PCMZ = 0 PCM zero output disabled

PCMZ = 1 PCM zero output enabled (default)

The PCMZ bit is used to enable or disable the output zero flags in PCM mode and the external DF mode.

7.6.1.3.26 R: Read Mode Select

Value is always '1', specifying the readback mode.

7.6.1.3.27 ZFGx: Zero-Detection Flag

Where x= L or R, corresponding to the DAC output channel. These bits are available only for readback.

Default value: 00

Table 31. ZFGx

ZFGx ZERO DETECTION

ZFGx = 0 Not zero

ZFGx = 1 Zero detected

These bits show zero conditions. The status is the same as that of the zero flags at ZEROL (pin 1) and ZEROR

(pin 2). See Zero Detect.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

7.6.1.3.28 Read Mode Select

Value is always '1', specifying the readback mode.

7.6.1.3.29 ID[4:0]: Device ID

The ID[4:0] bits hold a device ID in the TDMCA mode.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

DATA 24

PCM1796

BCK

SCK

DGND

VDD

MDI

MDO

RST

AGND2

I R–

OUT

V 1

V L

COM

V R

COM

IREF

I R+

OUT

AGND3R

AGND1

–

ZEROL

ZEROR

MSEL

LRCK

V 2L

AGND3L

I L–

OUT

I L+

OUT

LeftChannel

OUT

5V

V 2R

0.1 Fm

Controller

10 Fm

3.3V

PCM

Audio

Data

Source

0.1 Fm

10 Fm

Differential-

to-Single

Converter

With

Low-Pass

Filter

47 Fm

5V

10 Fm

10kW

–

RightChannel

OUT

–

0.1 Fm

10 Fm5V

Differential-

to-Single

Converter

With

Low-Pass

Filter

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component

specification, and TI does not warrant its accuracy or completeness. TI’s customers are

responsible for determining suitability of components for their purposes. Customers should

validate and test their design implementation to confirm system functionality.

8.1 Application Information

The PCM1795 device is a software-controlled, differential current output DAC that can accept multiple formats of

16-, 24-, or 32-bit PCM audio data, DSD audio data, or TDMCA data. Because the PCM1795 is a current output

part, in most cases a current to voltage stage is required before the signal is passed to the amplifier stage. A

microcontroller or DSP can use SPI or I2C to control the PCM1795 with ZEROL and ZEROR as status pins for

the outputs. The PCM1795 requires a 5-V analog supply, as well as a 3.3-V digital supply.

8.2 Typical Applications

8.2.1 Typical Connection Diagram in PCM Mode

Figure 52 shows a typical application circuit for PCM mode operation.

Figure 52. Typical Application Circuit for Standard PCM Audio Operation

8.2.1.1 Design Requirements

• Control: Host controller with SPI communication

• Audio Output: I/V output circuitry

• Audio Input: PCM, DSD, or TDMCA Digital Audio signal

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Typical Applications (continued)

8.2.1.2 Detailed Design Procedure

The design of the application circuit is very important in order to actually realize the high S/N ratio of which the

PCM1795 device is capable, because noise and distortion that are generated in an application circuit are not

negligible.

In the third-order, low-pass filter (LPF) circuit of Figure 53, the output level of 2.1 V RMS and 123-dB signal-to-

noise ratio is achieved.

Figure 54 shows a circuit for the DSD mode, which is a fourth-order LPF in order to reduce the out-of-band

noise.

8.2.1.2.1 I/V Section

The current of the PCM1795 device on each of the output pins (IOUTL+, IOUTL–, IOUTR+, IOUTR–) is 4 mAPP at 0

dB (full-scale). The voltage output level of the current-to-voltage (I/V) converter, VI, is given by Equation 2.

VI= 4 mAPP × RF

where

• RF= feedback resistance of the I/V converter (2)

An NE5534 operational amplifier is recommended for the I/V circuit to obtain the specified performance. Dynamic

performance such as the gain bandwidth, settling time, and slew rate of the operational amplifier affects the

audio dynamic performance of the I/V section.

8.2.1.2.2 Differential Section

The PCM1795 device voltage outputs are followed by differential amplifier stages that sum the differential signals

for each channel, creating a single-ended I/V op-amp output. In addition, the differential amplifiers provide a low-

pass filter function.

The operational amplifier recommended for the differential circuit is the low-noise type.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS E «H! 7M N: E «HM: NES ”W“ “H1 1H! [E «HM

–

820

0.1 F

22pF

VCC

2700pF

C12

0.1 Fm

VEE

NE5534

I-

OUT

820 W

C13

0.1 Fm

C18

22pF

VCC

2700pF

C14

0.1 Fm

VEE

NE5534

I +

OUT

–

C15

0.1 Fm

VCC

C16

0.1 Fm

VEE

NE5534

100 W

8200pF

200

8200pF

200 W

220

220 W

27000pF

180 W

C19

22pF

–

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Typical Applications (continued)

Figure 53. Measurement Circuit for PCM

Product Folder Links: PCM1795

‘5‘ TEXAS INSTRUMENTS E

–

820

0.1 F

22pF

VCC

2200pF

C12

0.1 Fm

VEE

NE5534

I-

OUT

820 W

C13

0.1 Fm

C18

22pF

VCC

2200pF

C14

0.1 Fm

VEE

NE5534

I +

OUT

–

C15

0.1 Fm

VCC

C16

0.1 Fm

VEE

NE5534

100W

8200pF

150

8200pF

150 W

75 W

27000pF

R10

120 W

R11

120 W

C19

22pF

–

91 W

22000pF

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Typical Applications (continued)

Figure 54. Measurement Circuit for DSD

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS 4f Ampmme ma)

0.0005

0.0004

0.0003

0.0002

0.0001

0.0002

0.0003

0.0004

0.0005

Amplitude(dB)

Frequency( f )´S

0 0.2 0.5

0.1 0.3 0.4

PassbandRipple

SharpRoll-Off

Amplitude(dB)

Frequency( f )´S

0 0.2 0.6

0.1 0.3 0.4 0.5

TransitionCharacteristics

SlowRoll-Off

IOUT-

Circuit(1)

IOUTL (Pin26)-

OUT+

BalancedOut

OUT-

IOUTL+(Pin25)

IOUTR+(Pin17)

IOUTR (Pin18)-IOUT-

I +

OUT

I +

OUT

Circuit(1)

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Typical Applications (continued)

(1) Circuit corresponds to Figure 53.

Figure 55. Measurement Circuit for Monaural Mode

8.2.1.3 Application Curves

Figure 56. Amplitude vs Frequency Figure 57. Amplitude vs Frequency

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

DATA

BCK

SCK

WDCK (WordClock)

ExternalFilterDevice

DATA

BCK

SCK

ZEROL

ZEROR

MSEL

LRCK

PCM1796

DFMS=0

BCK

SCK

WDCK(WordClock)

ExternalFilterDevice

DATA

BCK

SCK

ZEROL

ZEROR

MSEL

LRCK

PCM1796

DFMS=1

DATA_L

DATA_R

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Typical Applications (continued)

8.2.2 Application for External Digital Filter Interface

Figure 58 shows the connection diagram for an external digital filter.

Figure 58. Connection Diagram for External Digital Filter (Internal DF Bypass Mode) Application

8.2.2.1 Design Requirements

• Control: Host controller with SPI communication

• Audio Output: I/V output circuitry

• Audio Input: Digital Audio Filter with I2S or DSD output

8.2.2.2 Detailed Design Procedure

8.2.2.2.1 Application for Interfacing With an External Digital Filter

For some applications, it may be desirable to use an external digital filter to perform the interpolation function, as

it can provide improved stop-band attenuation when compared to the internal digital filter of the PCM1795 device.

The PCM1795 device supports several external digital filters, including:

• Texas Instruments DF1704 and DF1706

• Pacific Microsonics PMD200 HDCD filter/decoder IC

• Programmable DSPs

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS 11131 / |\|||||||||||||||||||||| \ / MSB LSE

MSB

BCK

DATA, DATAL,DATAR

1/4 fSor1/8fS

WDCK

AudioDataWord=16-Bit

AudioDataWord=32-Bit

AudioDataWord=24-Bit

1 2 3 4 5 6 7 8 9 10 11 12 13 14 151615

LSB

2819 20 21 22 23 24 25 26 273231 3229 30 31

161 2 3 4 5 6 7 8 9 10 11 12 13 14 152423 2017 18 19 2421 22 23

DATA, DATAL,DATAR

MSB LSB

1 2 3 4 5

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Typical Applications (continued)

The external digital filter application mode is accessed by programming the following bits in the corresponding

control register:

• DFTH = 1 (register 20)

The pins used to provide the serial interface for the external digital filter are illustrated in Figure 58. The word

clock (WDCK) signal must be operated at 8 times or 4 times the desired sampling frequency, fS.

8.2.2.2.2 Pin Assignment When Using the External Digital Filter Interface

• LRCK (pin 4): WDCK as word clock input

• BCK (pin 6): Bit clock for audio data

• DATA (pin 5): Monaural audio data input when the DFMS bit is not set to 1

• ZEROL (pin 1): DATAL as left channel audio data input when the DFMS bit is set to 1

• ZEROR (pin 2): DATAR as right channel audio data input when the DFMS bit is set to 1

8.2.2.2.3 Audio Format

The PCM1795 device in the external digital filter interface mode supports right-justified audio formats including

16-bit, 24-bit, and 32-bit audio data, as shown in Figure 59. The audio format is selected by the FMT[2:0] bits of

control register 18.

Figure 59. Audio Data Input Format for External Digital Filter (Internal DF Bypass Mode) Application

8.2.2.2.4 System Clock (SCK) and Interface Timing

The PCM1795 device in an application using an external digital filter requires the synchronization of WDCK and

the system clock. The system clock is phase-free with respect to WDCK. Interface timing among WDCK, BCK,

DATA, DATAL, and DATAR is shown in Figure 60 and Table 32.

Product Folder Links: PCM1795

t(BCH)

BCK

WDCK

t(BCL) t(LB)

t(BCY)

t(DS) t(DH)

1.4 V

1.4V

t(BL)

1.4V

DATA

DATAL

DATAR

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Typical Applications (continued)

Figure 60. Audio Interface Timing for External Digital Filter (Internal DF Bypass Mode) Application

Table 32. Timing Characteristics for Figure 60

MIN MAX UNIT

t(BCY) BCK pulse cycle time 20 ns

t(BCL) BCK pulse duration, low 7 ns

t(BCH) BCK pulse duration, high 7 ns

t(BL) BCK rising edge to WDCK falling edge 5 ns

t(LB) WDCK falling edge to BCK rising edge 5 ns

t(DS) DATA, DATAL, DATAR setup time 5 ns

t(DH) DATA, DATAL, DATAR hold time 5 ns

8.2.2.2.5 Functions Available in the External Digital Filter Mode

The external digital filter mode is selected by setting DSD = 0 (register 20, B5) and DFTH = 1 (register 20, B4).

The external digital filter mode allows access to the majority of the PCM1795 mode control functions.

Table 33 shows the register mapping available when the external digital filter mode is selected, along with

descriptions of functions that are modified when using this mode selection.

Table 33. External Digital Filter Register Map

(1) Function is disabled. No operation even if data bit is set.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS Amphmde ma)

0.0005

0.0004

0.0003

0.0002

0.0001

0.0002

0.0003

0.0004

0.0005

Amplitude(dB)

Frequency( f )´S

0 0.2 0.5

0.1 0.3 0.4

PassbandRipple

SharpRoll-Off

Amplitude(dB)

Frequency( f )´S

0 0.2 0.6

0.1 0.3 0.4 0.5

TransitionCharacteristics

SlowRoll-Off

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

8.2.2.2.5.1 FMT[2:0]: Audio Data Format Selection

Default value: 000

Table 34. FMT[2:0]

FMT[2:0] AUDIO DATA FORMAT SELECTION

000 16-bit right-justified format

001 32-bit right-justified format

010 24-bit right-justified format (default)

Other N/A

8.2.2.2.5.2 OS[1:0]: ΔΣ Modulator Oversampling Rate Selection

Default value: 00

Table 35. OS[1:0]

OS[1:0] OPERATION SPEED SELECTION

00 8 times WDCK (default)

01 4 times WDCK

10 16 times WDCK

11 Reserved

The effective oversampling rate is determined by the oversampling performed by both the external digital filter

and the ΔΣ modulator. For example, if the external digital filter is 8× oversampling, and OS[1:0] = 00 is selected,

then the ΔΣ modulator oversamples by 8×, resulting in an effective oversampling rate of 64×. The 16× WDCK

oversampling rate is not available above a 100-kHz sampling rate. If the oversampling rate selected is 16×

WDCK, the system clock frequency must be over 256 fS.

8.2.2.3 Application Curves

Figure 61. Amplitude vs Frequency Figure 62. Amplitude vs Frequency

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

BitClock

DSDDecoder

DATA

BCK

SCK

ZEROL

ZEROR

MSEL

LRCK

PCM1796

DATA_L

DATA_R

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

8.2.3 Application for DSD Format (DSD Mode) Interface

Figure 63 shows a connection diagram for DSD mode.

Figure 63. Connection Diagram in DSD Mode

8.2.3.1 Design Requirements

• Control: Host controller with SPI communication

• Audio Output: I/V output circuitry

• Audio Input: DSD Digital Audio input

8.2.3.2 Detailed Design Procedure

8.2.3.2.1 Features

This mode is used for interfacing directly to a DSD decoder, which is found in Super Audio CD™ (SACD)

applications.

The DSD mode is accessed by programming the following bit in the corresponding control register.

• DSD = 1 (register 20)

The DSD mode provides a low-pass filtering function. The filtering is provided using an analog FIR filter structure.

Four FIR responses are available and are selected by the DMF[1:0] bits of control register 18.

The DSD bit must be set before inputting DSD data; otherwise, the PCM1795 erroneously detects the TDMCA

mode and commands are not accepted through the serial control interface.

8.2.3.2.2 Pin Assignment When Using DSD Format Interface

Several pins are redefined for DSD mode operation. These include:

• DATA (pin 5): DSDL as left-channel DSD data input

• LRCK (pin 4): DSDR as right-channel DSD data input

• SCK (pin 7): DBCK as bit clock for DSD data

• BCK (pin 6): Set low (N/A)

8.2.3.2.3 Requirements for System Clock

For operation in DSD mode, the bit clock (DBCK) is required on pin 7 of the PCM1795. The frequency of the bit

clock can be Ntimes the sampling frequency. Generally, Nis 64 in DSD applications.

The interface timing between the bit clock and DSDL and DSDR is required to meet the setup and hold time

specifications shown in Figure 65 and Table 36.

Product Folder Links: PCM1795

DSDL,

DSDR

t(BCH)

DBCK

t(BCL)

t(BCY)

1.4V

t(DS) t(DH)

t =1/(64 44.1kHz)´

DSDL,

DSDR D0 D2 D3 D4

DBCK

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Figure 64. Normal Data Output Form From DSD Decoder

Figure 65. Timing for DSD Audio Interface

Table 36. Timing Characteristics for Figure 65

MIN MAX UNIT

t(BCY) DBCK pulse cycle time 85(1) ns

t(BCH) DBCK high-level time 30 ns

t(BCL) DBCK low-level time 30 ns

t(DS) DSDL, DSDR setup time 10 ns

t(DH) DSDL, DSDR hold time 10 ns

(1) 2.8224 MHz × 4. (2.8224 MHz = 64 × 44.1 kHz. This value is specified as a sampling rate of DSD.

8.2.3.2.4 DSD Mode Configuration and Function Controls

8.2.3.2.4.1 Configuration for the DSD Interface Mode

The DSD interface mode is selected by setting DSD = 1 (register 20, B5).

Table 37. DSD Mode Register Map

(1) Function is disabled. No operation even if data bit is set.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS Amphmde ma)

0.0005

0.0004

0.0003

0.0002

0.0001

0.0002

0.0003

0.0004

0.0005

Amplitude(dB)

Frequency( f )´S

0 0.2 0.5

0.1 0.3 0.4

PassbandRipple

SharpRoll-Off

Amplitude(dB)

Frequency( f )´S

0 0.2 0.6

0.1 0.3 0.4 0.5

TransitionCharacteristics

SlowRoll-Off

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

8.2.3.2.4.2 DMF[1:0]: Analog-FIR Performance Selection

Default value: 00

Table 38. DMF[1:0]

DMF[1:0] ANALOG-FIR PERFORMANCE SELECTION

00 FIR-1 (default)

01 FIR-2

10 FIR-3

11 FIR-4

Plots for the four analog finite impulse response (FIR) filter responses are shown in Analog FIR Filter

Performance in DSD Mode .

8.2.3.2.4.3 OS[1:0]: Analog-FIR Operation-Speed Selection

Default value: 00

Table 39. OS[1:0]

OS[1:0] OPERATING SPEED SELECTION

00 fDBCK (default)

01 fDBCK/2

10 Reserved

11 fDBCK/4

The OS bit in the DSD mode is used to select the operating rate of the analog FIR. The OS bits must be set

before setting the DSD bit to '1'.

8.2.3.3 Application Curves

Figure 66. Amplitude vs Frequency Figure 67. Amplitude vs Frequency

Product Folder Links: PCM1795

‘5‘ TEXAS INSTRUMENTS LL ILI'IIULI'L UM

Pre-TDMCA Frame

BCK

LRCK

TDMCAFrame Command

2BCKs

FSX

FSR

CLKX

CLKR

TI DSP

Host

Controller

IN Device

PCM1795

LRCK

BCK

DCI

VDD

Device ID = 1

DCO

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

8.2.4 TDMCA Interface Format

The PCM1795 device supports the time-division-multiplexed command and audio (TDMCA) data format to

simplify the host control serial interface. TDMCA format is designed not only for the multichannel buffered serial

port description (McBSP) of TI DSPs but also for any programmable devices. TDMCA format can transfer not

only audio data but also command data, so that it can be used together with any kind of device that supports

TDMCA format. The TDMCA frame consists of a command field, extended command field, and some audio data

fields. Those audio data are transported to IN devices (such as a DAC) and/or from OUT devices (such as an

ADC). The PCM1795 is an IN device. LRCK and BCK are used with both IN and OUT devices so that the

sample frequency of all devices in a system must be the same. The TDMCA mode supports a maximum of 30

device IDs. The maximum number of audio channels depends on the BCK frequency.

Figure 68. TDMCA Diagram

8.2.4.1 Design Requirements

• Control: TDMCA control information

• Audio Input: TDMCA input with LRCK signal with a pulse of two BCK clocks

• Audio Output: I/V output circuitry

8.2.4.2 Detailed Design Procedure

8.2.4.2.1 TDMCA Mode Determination

The PCM1795 device recognizes the TDMCA mode automatically when it receives an LRCK signal with a pulse

duration of two BCK clocks. If the TDMCA mode operation is not needed, the duty cycle of LRCK must be 50%.

Figure 69 shows the LRCK and BCK timing that determines the TDMCA mode. The PCM1795 device enters

TDMCA mode after two continuous TDMCA frames. Any TDMCA commands can be issued during the next

TDMCA frame after entering TDMCA mode.

Figure 69. LRCK and BCK Timing for Determination of TDMCA Mode

8.2.4.2.2 TDMCA Terminals

TDMCA requires six signals: four signals are for the command and audio data interface, and one pair for daisy-

chaining. These signals can be shared as shown in Table 40. The DO signal has a 3-state output so that it can

be connected directly to other devices.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS OUT Cham

INDevice

DCI

DCO

OUTDevice

DCI

DCO

OUT

IN/OUT

Device

INChain

OUTChain

INDevice

OUTDevice

DCI

DCO

DCI

DCO

DCIi

DCIo

DCOi

DCOo

OUT

DCIi

DCIo

DCOi

DCOo

NODevice

DCI

DCO

NODevice

DCI

DCO

NODevice

DCI

DCO

DCI

DCO

IN/OUT

Device

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Table 40. TDMCA Terminals

TERMINAL NAME TDMCA NAME PROPERTY DESCRIPTION

TDMCA frame start signal; it must be the same as the sampling

LRCK LRCK Input frequency

TDMCA clock; its frequency must be high enough to communicate a

BCK BCK Input TDMCA frame within an LRCK cycle

DATA DI Input TDMCA command and audio data input signal

MDO DO Output TDMCA command data 3-state output signal

MC DCI Input TDMCA daisy-chain input signal

MS DCO Output TDMCA daisy-chain output signal

8.2.4.2.3 Device ID Determination

TDMCA mode also supports a multichip implementation in one system. This capability means that a host

controller (DSP) can simultaneously support several TDMCA devices, which can be of the same type or different

types, including PCM devices. The PCM devices are categorized as either IN devices, OUT devices, IN/OUT

devices, and NO devices. The IN device has an input port to receive audio data; the OUT device has an output

port to supply audio data; the IN/OUT device has both input and output ports for audio data; and the NO device

has no port for audio data, but requires command data from the host. A DAC is an IN device; an ADC is an OUT

device; a codec is an IN/OUT device; and a PLL is a NO device. The PCM1795 is an IN device. For the host

controller to distinguish the devices, each device is assigned its own device ID by the daisy-chain. The devices

obtain their own device IDs automatically by connecting the DCI to the DCO of the preceding device and the

DCO to the DCI of the following device in the daisy-chain. The daisy-chains are categorized as the IN chain and

the OUT chain, which are completely independent and equivalent. Figure 70 shows an example daisy-chain

connection. If a system must chain the PCM1795 device and a NO device in the same IN or OUT chain, the NO

device must be chained at the back end of the chain because it does not require any audio data. Figure 71

shows an example TDMCA system including an IN chain and an OUT chain with a TI DSP. For a device to get

its own device ID, the DID signal must be set to '1' (see the Command Field section for details), and LRCK and

BCK must be driven in the TDMCA mode for all PCM devices that are chained. The device at the top of the chain

knows its device ID is '1' because its DCI is fixed high. Other devices count the BCK pulses and observe the

respective DCI signal to determine ID and position in the chain. Figure 72 shows the initialization of each device

ID.

Figure 70. Daisy-Chain Connection Example

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

INDevice

( )PCM1795

DCI

DCO

LRCK

BCK

DO DeviceID=2

TIDSP

FSX

CLKX

FSR

CLKR

NODevice

DCI

DCO

OUTDevice DCI

DCO

OUTDevice

DCI

DCO

DeviceID=3

DeviceID=2

DeviceID=3

LRCK

BCK

LRCK

BCK

LRCK

BCK

IN/OUT

Device

( )DIX1700

DCII

DCIO

LRCK

BCK

DeviceID=1

DCOO

DCOI

¼¼

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Figure 71. IN Daisy-Chain and OUT Daisy-Chain Connection Example for a Multichip System

Product Folder Links: PCM1795

i TEXAS INSTRUMENTS 3_ WWWW / \ g 3: 4 »— |——| 3_ |——| ‘_ '— |—ss— ‘I 7 +fHHHHHHHHHHHHH""HHHHHHHH X X X X X XX X XX \_V_/ D D D D D ‘ D X X X X X X X X._X

LRCK

BCK

DI CMD EMD EMD EMD CMD

Don’t

Care

EMD EMD

DO Ch1 Ch(m)

Ch2

CMD

CMD Ch2 Ch3 Ch(n) CMDCh1 Ch4

Ch3 Ch4

[ForInitialization]

[ForOperation]

32Bits

DO CMD CMD CMD CMD CMD CMD

1/fS

Don’t

Care

58BCKs

CommandField

DID

LRCK

BCK

DCO1,

DCI2

DeviceID=1

DeviceID=2

DCO1

DCO2,

DCI3

DCO29,

DCI30

DeviceID=3

DeviceID=30

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Figure 72. Device ID Determination Sequence

8.2.4.2.4 TDMCA Frame

In general, the TDMCA frame consists of the command field, extended command (EMD) field, and audio data

fields. All fields are 32 bits long, but the lowest byte has no meaning. The MSB is transferred first for each field.

The command field is always transferred as the first packet of the frame. The EMD field is transferred if the EMD

flag of the command field is high. If any EMD packets are transferred, no audio data follow the EMD packets.

This frame is for quick system initialization. All devices of a daisy-chain should respond to the command field and

extended command field. The PCM1795 has two audio channels that can be selected by OPE (register 19). If

the OPE bit is not set to high, those audio channels are transferred. Figure 73 shows the general TDMCA frame.

If some DACs are enabled, but corresponding audio data packets are not transferred, the analog outputs are

unpredictable.

Figure 73. General TDMCA Frame

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS 4—! _| Hmmmummmmmmm mmm X X X X X X X X X —CH:H:>—

Command

30 29 2328 24 22 15 716 8 0

DID EMD DCS R/W

DeviceID RegisterID Data NotUsed

LRCK

BCK

DI Don’t

Care

Ch1

Ch2 Ch3Ch1 Ch4

INandOUTChannelOrdersareCompletelyIndependent

7Packets 32Bits´

Ch5 Ch6

1/f (256BCKClocks)

Ch2

CMDCMD

CMD

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

Figure 74. TDMCA Frame Example of Six-Channel DAC and Two-Channel ADC With Command Read

8.2.4.2.5 Command Field

The normal command field is defined as shown in Figure 75. When the DID bit (MSB) is '1', this frame is used

only for device ID determination, and all remaining bits in the field are ignored.

Figure 75. Normal Command Field

8.2.4.2.5.1 Bit 31: Device ID Enable Flag

The PCM1795 operates to get its own device ID for TDMCA initialization if this bit is high.

8.2.4.2.5.2 Bit 30: Extended Command Enable Flag

The EMD packet is transferred if this bit is high; otherwise, it is skipped. Once this bit is high, this frame does not

contain any audio data. This is for system initialization.

8.2.4.2.5.3 Bit 29: Daisy-Chain Selection Flag

A high setting designates OUT-chain devices, low designates IN-chain devices. The PCM1795 is an IN device,

so the DCS bit must be set low.

8.2.4.2.5.4 Bits[28:24]: Device ID

The device ID is 5 bits long and it can be defined. These bits identify the order of a device in the IN or OUT

daisy-chain. The top of the daisy-chain defines device ID 1 and successive devices are numbered 2, 3, 4, etc. All

devices for which the DCI is fixed high are also defined as ID 1. The maximum device ID is 30 each in the IN and

OUT chains. If a device ID of 0x1F is used, all devices are selected as broadcast when in the write mode. If a

device ID of 0x00 is used, no device is selected.

8.2.4.2.5.5 Bit 23: Command Read/Write flag

If this bit is high, the command is a read operation.

8.2.4.2.5.6 Bits[22:16]: Register ID

The register ID is 7 bits long.

8.2.4.2.5.7 Bits[15:8]: Command data

The command data are 8 bits long. Any valid data can be chosen for each register.

8.2.4.2.5.8 Bits[7:0]: Not used

These bits are never transported when a read operation is performed.

Product Folder Links: PCM1795

BCK

DOEN

(Internal)

1BCKEarly

Read ModeandProperRegisterID WriteDataRetrieved,ifWriteMode

ReadDataDriven,ifReadMode

AudioData

12 716 8 0

MSB 24Bits LSB All0s

4 3

ExtendedCommand

30 29 2328 24 22 15 716 8 0

RSVD EMD DCS R/W

DeviceID RegisterID Data NotUsed

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

8.2.4.2.6 Extended Command Field

The extended command field is the same as the command field, except that it does not have a DID flag.

Figure 76 defines the extended command field.

Figure 76. Extended Command Field

8.2.4.2.7 Audio Fields

The audio field is 32 bits long and the audio data are transferred MSB first, so the other fields must be filled with

0s as shown in Figure 77.

Figure 77. Audio Field Example

8.2.4.2.8 TDMCA Register Requirements

The TDMCA mode requires device ID and audio channel information, as previously described. The OPE bit in

the TDMCA mode; see the mode control register map of Table 10.

8.2.4.2.9 Register Write/Read Operation

The command supports register write and read operations. If the command requests to read one register, the

read data are transferred on DO during the data phase of the timing cycle. The DI signal can be retrieved at the

positive edge of BCK, and the DO signal is driven at the negative edge of BCK. DO is activated one BCK cycle

early to compensate for the output delay caused by high impedance. Figure 78 shows the TDMCA write and

read timing.

Figure 78. TDMCA Write and Read Operation Timing

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS HHH4HOHHHHHHHHHH HHHHH XXXXXXXX 4H l—l AAAA J—I: : MHHHHH HHHHmwXHHHHHH X X X X X X X X a { ﬂ —l { m

14 BCKDelay

2BCKDelay

DID=1

DID=2

DID=8

Don’tCareCMD CMDCh2 Ch15

5Packets 32Bits´

1/f (256BCKClocks)

DCI

DCO

Ch1 Ch16

DCI

DCO

DCI

LRCK

BCK

9Packets ´32Bits

LRCK

BCK

DI Don’tCare

DCI1

DCO1

DID=1

DCI2

DCO2

DID=2

DCI3

DCO3

DID=3

DCI4

DCO4

DID=4

CMD

1/fS(384BCKClocks)

CMD Ch1 Ch2 Ch3 Ch4 Ch5 Ch6 Ch7 Ch8

INDaisyChain

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

8.2.4.2.10 TDMCA Mode Operation

DCO specifies the owner of the next audio channel in TDMCA mode operation. When a device retrieves its own

audio channel data, DCO goes high during the last audio channel period. Figure 79 shows the DCO output

timing in TDMCA mode operation. The host controller ignores the behavior of DCI and DCO. DCO indicates the

last audio channel of each device. Therefore, DCI means the next audio channel is allocated.

If some devices are skipped because of no active audio channel, the skipped devices must notify the next device

that the DCO will be passed through the next DCI. Figure 80 and Figure 81 show DCO timing with skip

operation. Figure 82 and Table 41 show the ac timing of the daisy-chain signals.

Figure 79. DCO Output Timing of TDMCA Mode Operation

Figure 80. DCO Output Timing With Skip Operation

Product Folder Links: PCM1795

t(COE)

BCK

LRCK

DCI

DCO

t(DS)

t(BL)

t(LB)

t(BCY) t(DS)

t(DOE)

t(DH)

CommandPacket

LRCK

BCK

DCO1

DCO2

DIDEMD

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

Figure 81. DCO Output Timing With Skip Operation (for Command Packet 1)

Figure 82. AC Timing of Daisy-Chain Signals

Table 41. Timing Characteristics for Figure 82

MIN MAX UNIT

t(BCY) BCK pulse cycle time 20 ns

t(LB) LRCK setup time 0 ns

t(BL) LRCK hold time 3 ns

t(DS) DI setup time 0 ns

t(DH) DI hold time 3 ns

t(DS) DCI setup time 0 ns

t(DH) DCI hold time 3 ns

t(DOE) DO output delay(1) 8 ns

t(COE) DCO output delay(1) 6 ns

(1) Load capacitance is 10 pF.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

9 Power Supply Recommendations

The PCM1795 device requires a 5-V nominal supply and a 3.3-V nominal supply. The 5-V supply is for the

analog circuitry powered by VCC1, VCC2L, and VCC2R pins. The 3.3-V supply is for the digital circuitry powered by

the VDD pin. The decoupling capacitors for the power supplies should be placed close to the device terminals.

10 Layout

10.1 Layout Guidelines

Designers should try to use the same ground between AGND and DGND to avoid any potential voltage

difference between them. Ensure that the return currents for digital signals will avoid the AGND pin or the input

signals to the I/V stage. Avoid running high-frequency clock and control signals near AGND, or any of the VOUT

pins where possible. The pin layout of the PCM1795 device partitions into two sides, the analog side and the

digital side. Providing the system is partitioned in such a way that digital signals are routed away from the analog

sections, then no digital return currents (for example, clocks) should be generated in the analog circuitry.

• Decoupling capacitors should be placed as close to the VCC1, VCC2L, VCCR2, VCOML, VCOMR, and VDD pins as

possible.

• Further guidelines can be found in Figure 83.

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS It is recommended to place a top layer ground pourfor DDDDDDUDDDDDDD DDDUDDUD |:| DDDDU HF HF H F H F FL; /I\ :

0.1 µF

10 µF

3.3V

0.1 µF 10 µF

10 µF

0.1 µF 10 µF

47 µF +

10 KO

Left I/V

Output

circuit

Right I/V

Output

circuit

It is recommended to place a top layer ground pour for

shielding around PCM1795 and connect to lower main PCB

ground plane by multiple vias

These resistors help prevent

overshoot and reduce

coupling, Start at 10? for

MCLK and 27? for others.

ZeroL

ZeroR

MSEL

LRCK

DATA

BCK

SCK

DGND

VDD

MDI

RST

MDO

VCC2L

AGND3L

IoutL-

IoutL+

AGND2

Iref

VCC1

VcomL

VcomR

AGND1

IoutR-

IoutR+

VCC2R

AGND3R

PCM1795

Communication

signals to host

Signals to host

Top Layer Ground Pour

Top Layer Signal Traces

Via to bottom Ground Plane

Pad to top layer ground pour

PCM1795

SLES248A –MAY 2009–REVISED MARCH 2015

www.ti.com

10.2 Layout Example

Figure 83. Layout Recommendation

Product Folder Links: PCM1795

l TEXAS INSTRUMENTS

PCM1795

www.ti.com

SLES248A –MAY 2009–REVISED MARCH 2015

11 Device and Documentation Support

11.1 Device Support

11.1.1 Third-Party Products Disclaimer

TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT

CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES

OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER

ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.

11.2 Trademarks

System Two, Audio Precision are trademarks of Audio Precision, Inc.

SPI is a trademark of Motorola.

Pacific Microsonics is a trademark of Pacific Microsonics, Inc.

Super Audio CD is a trademark of Sony Corporation.

All other trademarks are the property of their respective owners.

11.3 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam

during storage or handling to prevent electrostatic damage to the MOS gates.

11.4 Glossary

SLYZ022 —TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

12 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and revision of

this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

Product Folder Links: PCM1795

I TEXAS INSTRUMENTS Sample: Sample:

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

PCM1795DB ACTIVE SSOP DB 28 50 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 PCM1795

PCM1795DBR ACTIVE SSOP DB 28 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 PCM1795

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 2

I TEXAS INSTRUMENTS ‘3‘ V.'

PACKAGE MATERIALS INFORMATION

www.ti.com 3-Jun-2022

TAPE AND REEL INFORMATION

Reel Width (W1)

REEL DIMENSIONS

Dimension designed to accommodate the component length

Dimension designed to accommodate the component thickness

Overall width of the carrier tape

Pitch between successive cavity centers

Dimension designed to accommodate the component width

TAPE DIMENSIONS

K0 P1

B0 W

Cavity

QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE

Pocket Quadrants

Sprocket Holes

Q1 Q1Q2 Q2

Q3 Q3Q4 Q4 User Direction of Feed

Reel

Diameter

*All dimensions are nominal

Device Package

Type Package

Drawing Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm) B0

(mm) K0

(mm) P1

(mm) W

(mm) Pin1

Quadrant

PCM1795DBR SSOP DB 28 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com 3-Jun-2022

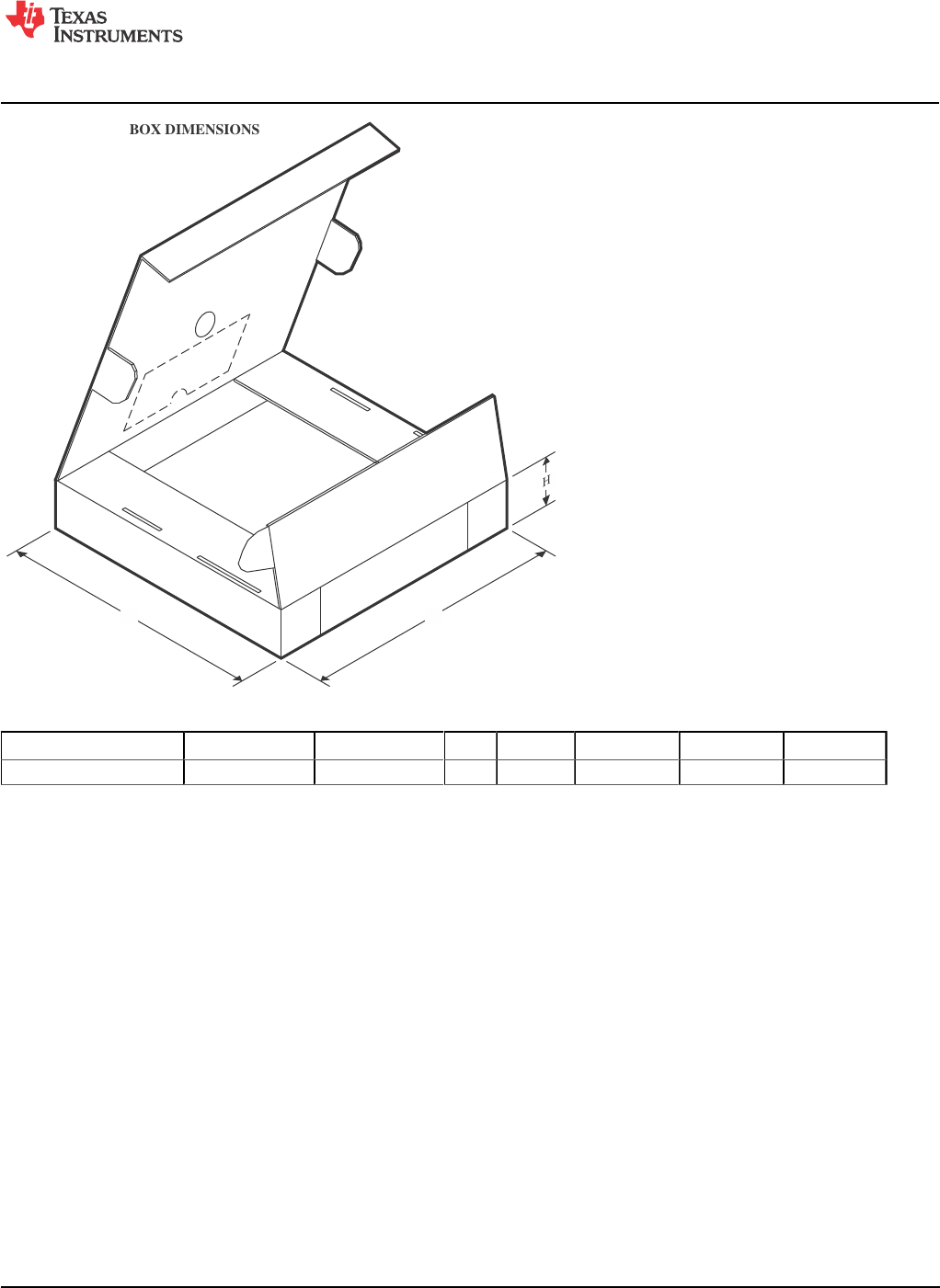

TAPE AND REEL BOX DIMENSIONS

Width (mm)

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

PCM1795DBR SSOP DB 28 2000 356.0 356.0 35.0

Pack Materials-Page 2

I TEXAS INSTRUMENTS __________________ ‘(I(I“""""""""

PACKAGE MATERIALS INFORMATION

www.ti.com 3-Jun-2022

TUBE

L - Tube length

T - Tube

height

W - Tube

width

B - Alignment groove width

*All dimensions are nominal

Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm)

PCM1795DB DB SSOP 28 50 530 10.5 4000 4.1

Pack Materials-Page 3

i , s % E2333: I-III EEEEEEE

www.ti.com

PACKAGE OUTLINE

26X 0.65

8.45

28X 0.38

0.22

8.2

7.4 TYP

SEATING

PLANE

0.05 MIN

0.25

GAGE PLANE

0 -8

2 MAX

B5.6

5.0

NOTE 4

10.5

9.9

NOTE 3

0.95

0.55

(0.15) TYP

SSOP - 2 mm max heightDB0028A

SMALL OUTLINE PACKAGE

4214853/B 03/2018

14 15

0.15 C A B

PIN 1 INDEX AREA

SEE DETAIL A

0.1 C

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not

exceed 0.15 mm per side.

4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.

5. Reference JEDEC registration MO-150.

A 15

DETAIL A

TYPICAL

SCALE 1.500

gag—Eggi 1?:

www.ti.com

EXAMPLE BOARD LAYOUT

0.07 MAX

ALL AROUND 0.07 MIN

ALL AROUND

28X (1.85)

28X (0.45)

26X (0.65)

(7)

(R0.05) TYP

SSOP - 2 mm max heightDB0028A

SMALL OUTLINE PACKAGE

4214853/B 03/2018

NOTES: (continued)

6. Publication IPC-7351 may have alternate designs.

7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

LAND PATTERN EXAMPLE

EXPOSED METAL SHOWN

SCALE: 10X

SYMM

14 15

15.000

METAL

SOLDER MASK

OPENING METAL UNDER

SOLDER MASK SOLDER MASK

OPENING

EXPOSED METAL

SOLDER MASK DETAILS

NON-SOLDER MASK

DEFINED

(PREFERRED)

SOLDER MASK

DEFINED

@5ng wﬁwmﬁﬁmgi Lit

www.ti.com

EXAMPLE STENCIL DESIGN

28X (1.85)

28X (0.45)

26X (0.65)

(7)

(R0.05) TYP

SSOP - 2 mm max heightDB0028A

SMALL OUTLINE PACKAGE

4214853/B 03/2018

NOTES: (continued)

8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

9. Board assembly site may have different recommendations for stencil design.

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE: 10X

SYMM

14 15

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

PCM1795 Datasheet by Texas Instruments

INFORMATION

HELP

CONTACT US

FOLLOW US
