Analog Devices Inc

ADL8106ACEZ Low Noise Amplifier

Analog Devices' ADL8106ACEZ GaAs, pHEMT, wideband low noise amplifier operates from 20 GHz to 54 GHz

Image of Analog Devices' ADL8106ACEZ Low Noise AmplifierADI's ADL8106ACEZ is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), monolithic microwave integrated circuit (MMIC), wideband low noise amplifier that operates from 20 GHz to 54 GHz. It provides a gain of 21.5 dB, an output power for 1 dB compression (OP1dB) of 14 dBm, and a typical output third-order intercept (OIP3) of 21.5 dBm at 30 GHz to 44 GHz. The ADL8106ACEZ requires 120 mA from a 3 V supply voltage (VDD) and features inputs and outputs internally matched to 50 Ω, facilitating integration into multichip modules (MCMs).

Features
  • Integrated power supply capacitors and bias inductors
  • Integrated ac-coupling capacitors
  • Gain: 21.5 dB typical at 30 GHz to 44 GHz
  • Input return loss: 12.5 dB typical at 30 GHz to 44 GHz
  • Output return loss: 19 dB typical at 30 GHz to 44 GHz
  • OP1dB: 14.5 dB typical at 30 GHz to 44 GHz
  • PSAT: 19 dBm typical at 30 GHz to 44 GHz
  • OIP3: 21.5 dBm typical at 30 GHz to 44 GHz
  • Noise figure: 3.5 dB typical at 30 GHz to 44 GHz
  • 3 V typical supply voltage at 120 mA
  • 50 Ω matched input and output
  • 24-terminal, 5.00 mm × 5.00 mm, chip array small outline no lead cavity [LGA_CAV]
Applications
  • Test instrumentation
  • Military and space

ADL8106ACEZ Low Noise Amplifier

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
IC RF AMP GPS 18GHZ-54GHZ 24LGAADL8106ACEZ-R7IC RF AMP GPS 18GHZ-54GHZ 24LGA0 - Immediate$30,374.91View Details

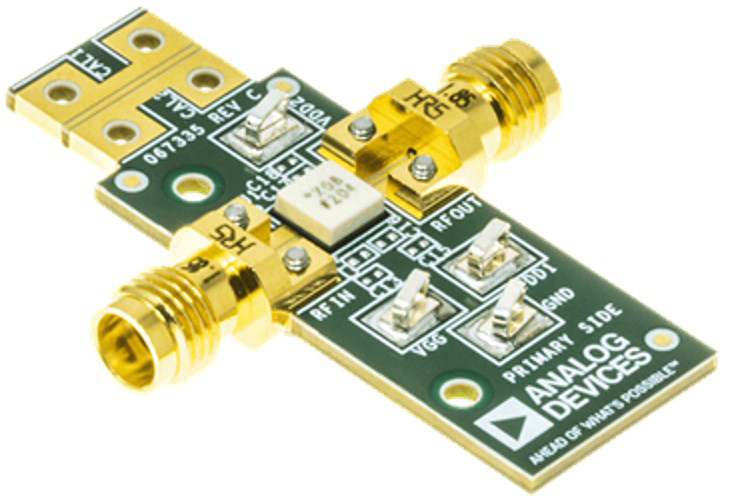

Evaluation Board

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
ADL8106 EVAL BOARDADL8106-EVALZADL8106 EVAL BOARD5 - Immediate$76,725.62View Details
Published: 2022-11-02
