ARM® DSTREAM

Debug and Trace Adapter

The ARM DSTREAM High-Performance Debug and Trace unit enables powerful software debug and optimization on any ARM processor-based hardware target. With features such as accelerated hardware bring-up for many development platforms and open debug interface for use with third-party and custom tools, DSTREAM paired with DS-5 Development Studio is a comprehensive solution for development and debug of complex SoCs based on an ARM Core.

DSTREAM ships with powerful software utilities to assist with SoC bring-up and hardware validation.

A low-level RDDI connection to DSTREAM can be used to gain access to the JTAG scan-chains inside the target device. This enables the unit to be used for simple tasks such as production testing.

http://ds.arm.com/ds-5/debug/dstream/

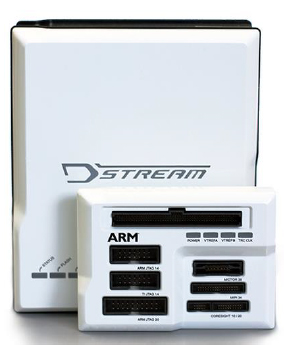

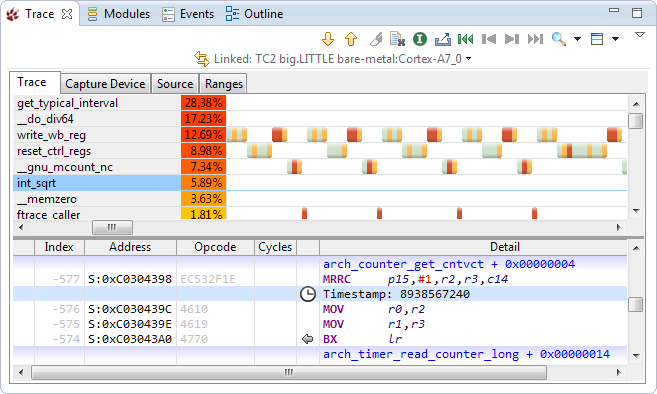

Debug and Trace 4GB trace buffer for extended trace capture Parallel Trace up to 9.6 Gbps Serial Trace up to 20 Gbps with HSST- Probe Download speed up to 2.5MB per second JTAG clock up to 60 MHZ Flexible architecture to support 3rd party Trace - Unparalleled Insight into System Execution click images to view larger

Features	DSTREAM
Debug & Trace Serial Wire Debug ( SWD ) JTAG CoreSight
Supported ARM architecture ARM v4 to v8
Interface Vref	1,0V - 5,0V (configurable by target )
Target Connector 14-pin & 20-pin 14-pin 10-pin & 20-pin 38-pin 34-pin 60-pin	ARM JTAG TI OMAP CoreSight MICTOR MIPI MIPI via adapter
Order Code DSTREAM DEBUG & TRACE UNIT	DSTRM-KT-0181A
