HAH1 Series Automotive Current Sensors

LEM HAH1 series automotive current sensors offer electronic measurement in high-power and low-voltage automotive applications

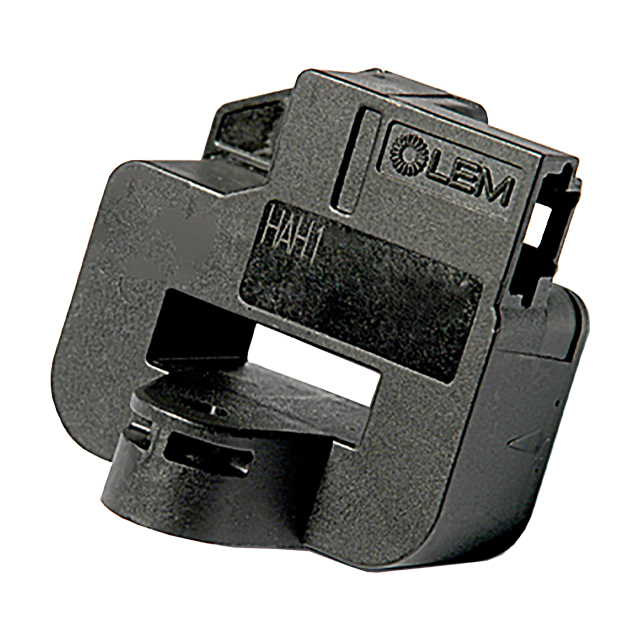

Image of LEM HAH1 Series Automotive Current Sensors LEM HAH1 automotive current sensors are designed for the electronic measurement of DC, AC, or pulsed currents in high-power and low-voltage automotive applications with galvanic separation between the primary circuit and the secondary circuit. The HAH1 family offers the choice of having different current measuring ranges in the same housing. While the HAH1BVW series is dedicated to battery management systems, the HAH1DRW is designed for automotive motor control applications. These sensors rely on the open loop Hall effect principle and utilize busbar mounting ±1200 A with redundant or dual range capabilities.

Features
  • Open loop Hall effect
  • Unipolar +5 VDC power supply
  • Primary current measuring range ±1200 A
  • Maximum RMS primary admissible current: defined by busbar to have T <+150°C
  • Operating temperature range: -40°C < T < +125°C
  • Output voltage: full ratiometric (in sensitivity and offset)
  • Excellent accuracy
  • Very good linearity
  • Very low thermal offset and sensitivity drift
  • Galvanic separation
  • Non-intrusive solution
  • High-frequency bandwidth
Applications
  • Electrical power steering
  • Starter generators
  • Converters
  • Battery management systems
  • Motor drive applications

HAH1 Series Automotive Current Sensors

ImageManufacturer Part NumberDescriptionCurrent - SensingAvailable QuantityPriceView Details
CURRENT SENSOR HE/OL 500AHAH1DRW 500-SCURRENT SENSOR HE/OL 500A500A169 - Immediate$3,187.89View Details
CURRENT SENSOR HE/OL 900AHAH1DRW 900-SCURRENT SENSOR HE/OL 900A900A229 - Immediate$2,703.33View Details
CURRENT SENSOR HE/OL 60AHAH1BVW S/D02CURRENT SENSOR HE/OL 60A60A218 - Immediate$2,944.68View Details
CURRENT SENSOR HE/OL 350AHAH1BVW S/D08CURRENT SENSOR HE/OL 350A350A65 - Immediate$3,417.13View Details
CURRENT SENSOR HE/OL -600A-300AHAH1BV S/D24CURRENT SENSOR HE/OL -600A-300A-600A ~ 300A0 - Immediate$1,564.99View Details
CURRENT SENSOR HE/OL -200A-400AHAH1BV S/24CURRENT SENSOR HE/OL -200A-400A-200A ~ 400A0 - Immediate$1,848.90View Details
CURRENT SENSOR HE/OL 100AHAH1DRW 100-S/SP5CURRENT SENSOR HE/OL 100A100A0 - Immediate$1,677.30View Details
CURRENT SENSOR HE/OL 1000AHAH1DRW 1000-S/SP5CURRENT SENSOR HE/OL 1000A1000A0 - Immediate$1,695.46View Details
CURRENT SENSOR HE/OL 1100AHAH1DRW 1100-S/SP5CURRENT SENSOR HE/OL 1100A1100A0 - Immediate$1,695.46View Details
CURRENT SENSOR HE/OL 1200AHAH1DRW 1200-S/SP5CURRENT SENSOR HE/OL 1200A1200A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 400AHAH1DRW 400-S/SP5CURRENT SENSOR HE/OL 400A400A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 200AHAH1DRW 200-S/SP5CURRENT SENSOR HE/OL 200A200A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 1500AHAH1DRW 1500-S/SP5CURRENT SENSOR HE/OL 1500A1500A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 300AHAH1DRW 300-S/SP5CURRENT SENSOR HE/OL 300A300A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 500AHAH1DRW 500-S/SP5CURRENT SENSOR HE/OL 500A500A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 900AHAH1DRW 900-S/SP5CURRENT SENSOR HE/OL 900A900A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 600AHAH1DRW 600-S/SP5CURRENT SENSOR HE/OL 600A600A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 700AHAH1DRW 700-S/SP5CURRENT SENSOR HE/OL 700A700A0 - Immediate$1,716.02View Details
CURRENT SENSOR HE/OL 400AHAH1BVW S/04CURRENT SENSOR HE/OL 400A400A0 - Immediate$1,799.36View Details
CURRENT SENSOR HE/OL 100AHAH1BVW S/01CURRENT SENSOR HE/OL 100A100A0 - Immediate$1,799.36View Details
