Phoenix Contact

PTFIX 10 6-Position 10 mm² Terminal Blocks

Phoenix Contact's PTFIX family continues to grow with the addition of PTFIX 10

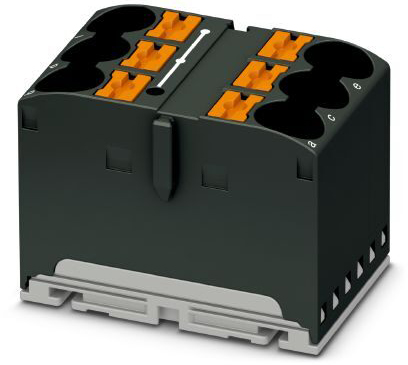

Image of Phoenix Contact's PTFIX 10 6X10 mm² Phoenix Contact's PTFIX line of terminal blocks provides simple and fast distribution solutions in hundreds of variations. The PTFIX's best features are its compact size, perfect modularity, and wide variety of options in colors, sizes, and configurations.

The PTFIX 10 blocks are all 10 mm2 contacts, not just a feed-in. This niche group of PTFIX products is designed for situations where a larger wire size is needed for multiple contacts. Although they are slightly larger than the current PTFIX blocks, the PTFIX 10 blocks are still very compact compared to similar offerings and still include easy mounting flexibility for tight spaces.

Features
  • 6-position 10 mm2 contacts
  • Available in gray, blue, red, green, and black
  • Mounting options include flange/panel, DIN rail, and adhesive
Specifications
  • 600 V
  • 60 A
  • 20-6 AWG

Din Rail Mount

ImageManufacturer Part NumberDescriptionWire Gauge or Range - AWGAvailable QuantityPriceView Details
TERM BLK 6POS GRAY1082403TERM BLK 6POS GRAY6-20 AWG0 - Immediate$354.11View Details
TERM BLK 6POS BLUE1082404TERM BLK 6POS BLUE6-20 AWG10 - Immediate$354.11View Details
TERM BLK 6POS RED1082405TERM BLK 6POS RED6-20 AWG1 - Immediate$354.11View Details
TERM BLK 6POS GREEN1082407TERM BLK 6POS GREEN6-20 AWG10 - Immediate$354.11View Details
TERM BLK 6POS BLACK1082411TERM BLK 6POS BLACK6-20 AWG10 - Immediate$354.11View Details
TERM BLK 6POS GRAY1082479TERM BLK 6POS GRAY6-20 AWG286 - Immediate$354.11View Details
TERM BLK 6POS BLUE1082480TERM BLK 6POS BLUE6-20 AWG65 - Immediate$354.11View Details
TERM BLK 6POS RED1082481TERM BLK 6POS RED6-20 AWG0 - Immediate$354.11View Details
TERM BLK 6POS GREEN1082483TERM BLK 6POS GREEN6-20 AWG216 - Immediate$354.11View Details
TERM BLK 6POS BLACK1082486TERM BLK 6POS BLACK6-20 AWG0 - Immediate$354.11View Details

Direct Mount

ImageManufacturer Part NumberDescriptionVoltage - ULAvailable QuantityPriceView Details
TERM BLK 6POS GRAY1082387TERM BLK 6POS GRAY600 V105 - Immediate$297.26View Details
TERM BLK 6POS BLUE1082388TERM BLK 6POS BLUE600 V7 - Immediate$297.26View Details
TERM BLK 6POS RED1082389TERM BLK 6POS RED600 V407 - Immediate$297.26View Details
TERM BLK 6POS GREEN1082391TERM BLK 6POS GREEN600 V0 - Immediate$297.26View Details
TERM BLK 6POS BLACK1082395TERM BLK 6POS BLACK600 V0 - Immediate$297.26View Details
TERM BLK 6POS GRAY1082492TERM BLK 6POS GRAY600 V6 - Immediate$468.73View Details
TERM BLK 6POS BLUE1082493TERM BLK 6POS BLUE600 V10 - Immediate$468.73View Details
TERM BLK 6POS RED1082494TERM BLK 6POS RED600 V0 - ImmediateSee Page for PricingView Details
TERM BLK 6POS GREEN1082496TERM BLK 6POS GREEN600 V9 - Immediate$468.73View Details
TERM BLK 6POS BLACK1082499TERM BLK 6POS BLACK600 V0 - ImmediateSee Page for PricingView Details
Published: 2021-03-26
