            ZSSC3281 Dual-Channel Resistive Sensor Signal Conditioner IC with Analog Output
                    Renesas’ dual-path SSC IC is suitable for a variety of applications including medical, industrial, and consumer/white goods

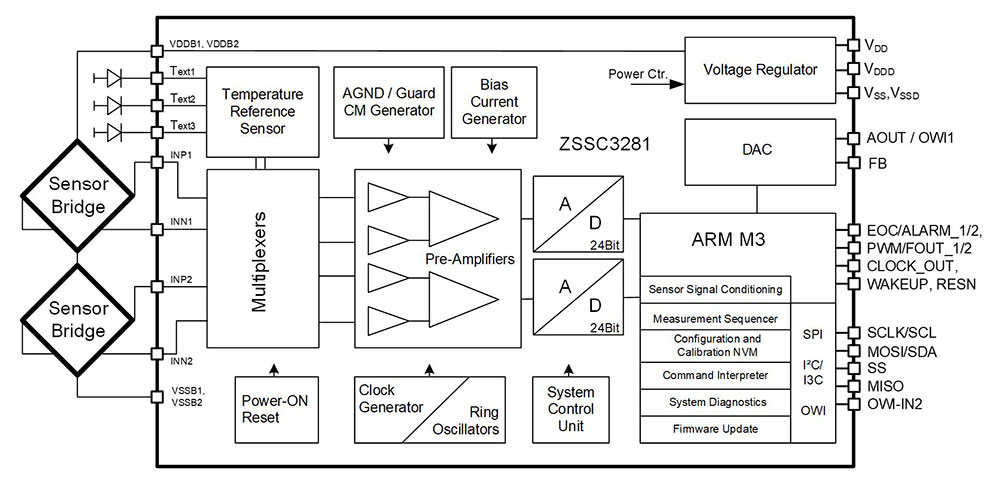

Image of Renesas ZSSC3281 Dual-Channel Resistive Sensor Signal Conditioner IC with Analog Output Renesas' ZSSC3281 is a dual-path SSC IC for highly accurate amplification, digitization, and sensor-specific correction of sensor signals. It is suitable for bridge and half-bridge sensors as well as external voltage-source element and single-element sensors (e.g., Pt100 and external temperature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 32-bit Arm^® M3-based math core running a correction algorithm with calibration coefficients stored in a non-volatile, reprogrammable memory. The programmable, integrated sensor front-end allows the optimal application of various sensors for a broad range of applications.

Features

Dual-channel resistive sensor signal conditioner
Digital communication and calibration interfaces SPI, I²C, OWI
Supports various sensor element configurations
On-chip temperature sensor
External temperature sensing supported: three channels
Programmable 16-bit digital-to-analog-converter and output
Absolute voltage output: 0 V to 10 V
V_DD ratiometric voltage output
Current-loop output: 4 mA to 20 mA
Programmable measurement scheduler
On-chip diagnostics

Benefits

Accommodates nearly all resistive bridge sensor types (signal spans from 1 mV/V up to 500 mV/V)
Integrated Arm-M3 processor with integrated math for digital signal processing
Embedded algorithmic for virtual 3^rd channel
Fully-corrected signal at digital or analog output stages
One-pass calibration minimizes calibration costs
Integrated reprogrammable non-volatile memory
Excellent for high-performance sensing solutions
Optimized for high accuracy
