            STPMIC1L Power Management IC for MPU: 2 Buck Converters and 4 LDOs

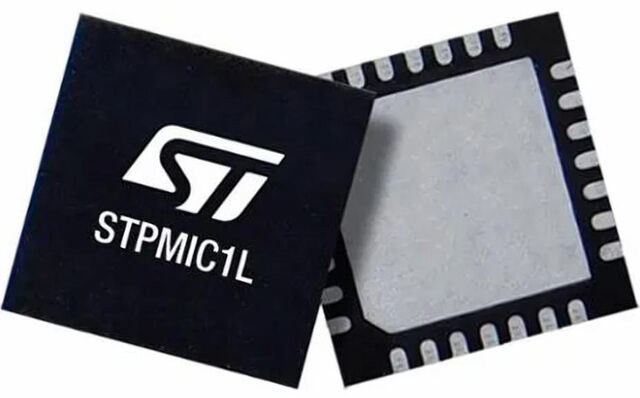

                    The STMicroelectronics STPMIC1L power‑management IC with advanced low‑power features that are managed by a host processor through I²C and general I/O interfaces


The STMicroelectronics STPMIC1L fully integrated power‑management IC is tailored for STM32MP1x MPU applications that demand low power consumption and high efficiency. It incorporates advanced low‑power features that can be managed by a host processor through I²C and general I/O interfaces.

Its regulators are engineered to deliver power not only to the main application processor but also to external system components such as DDR and Flash memory devices. Additional peripherals and core circuitry are powered through configurable GPO pins.

The device includes two high‑performance buck SMPS regulators, optimized for fast transient response and precise output voltage across a wide range of operating conditions. An advanced PWM phase‑shift synchronization system, supported by an integrated PLL, helps minimize noise and reduce EMI.

Features

Input voltage range from 2.8 V to 5.5 V
Two buck SMPS converters with adaptive constant on-time (COT) topology
Two adjustable general-purpose LDOs
One LDO for DDR3L/DDR4 termination (sink-source), or as general-purpose LDO
One LDO for USB PHY supply
Two MHz switching frequency buck converters with forced PWM

User programmable non-volatile memory (NVM), enabling scalability to support a wide range of applications
Immediate output alternate settings toggle via dedicated power control pins
Programmable output voltages turn-on/off sequences I²C and digital IO control interface
Two GPO output controls for external commands
VFQFPN 28L (4 mm x 4 mm x 1.0 mm)

Applications
