208-4
208-4
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
208-4
208-4
208-4

208-4

Digi-Key Part Number
CT2084-ND
Manufacturer
CTS Electrocomponents
Manufacturer Product Number
208-4
Description
SWITCH SLIDE DIP SPST 50MA 24V
Manufacturer Standard Lead Time
12 Weeks
Detailed Description
Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 50mA 24VDC
Customer Reference
Datasheet
 Datasheet
EDA/CAD Models
208-4 Models
Product Attributes
Type
Description
Select All
Category
Mfr
CTS Electrocomponents
Series
208
Package
Tube
Product Status
Active
Circuit
SPST
Number of Positions
4
Current Rating (Amps)
50mA
Voltage Rating
24VDC
Actuator Type
Slide (Standard)
Actuator Level
Raised
Contact Material
-
Contact Finish
Tin
Height Above Board
0.334" (8.48mm)
Mounting Type
Through Hole
Termination Style
PC Pin
Pitch
0.100" (2.54mm), Full
Washable
No
Features
-
Operating Temperature
-55°C ~ 85°C
Body Material
Plastic
Length
0.486" (12.34mm)
Mechanical Life
-
Electrical Life
2,000 Cycles
Documents & Media
Resource TypeLink
Datasheets208 Series
Product Training ModulesDIP Switch
Environmental InformationRoHS Dip & Tact Switches
CAD Models208-4 Models
PCN Assembly/OriginMult Devs Second Source 27/Apr/2021

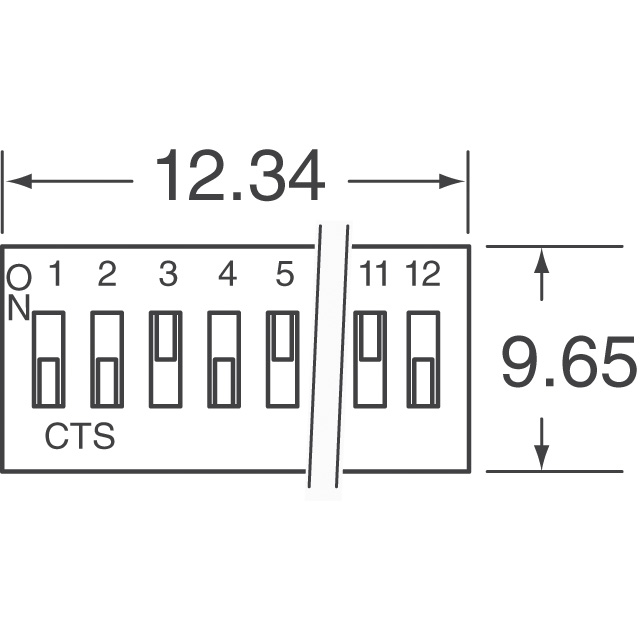

Product Drawings
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)Not Applicable
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8536.50.9065
California Prop 65
Warning Information
In-Stock: 25,543
Quantity
All prices are in INR
Tube
QtyUnit PriceExt Price
1₹50.02000₹50.02
10₹48.02100₹480.21
25₹46.25360₹1,156.34
100₹40.02590₹4,002.59
250₹36.46604₹9,116.51
500₹33.79820₹16,899.10
1,000₹30.24080₹30,240.80
2,500₹28.63993₹71,599.82
5,000₹26.50549₹1,32,527.45
You May Also Be Interested InSee All 25
Additional Resources
AttributeDescription
Other Names
CT2084
208004
CT2084-NDR
Standard Package45
