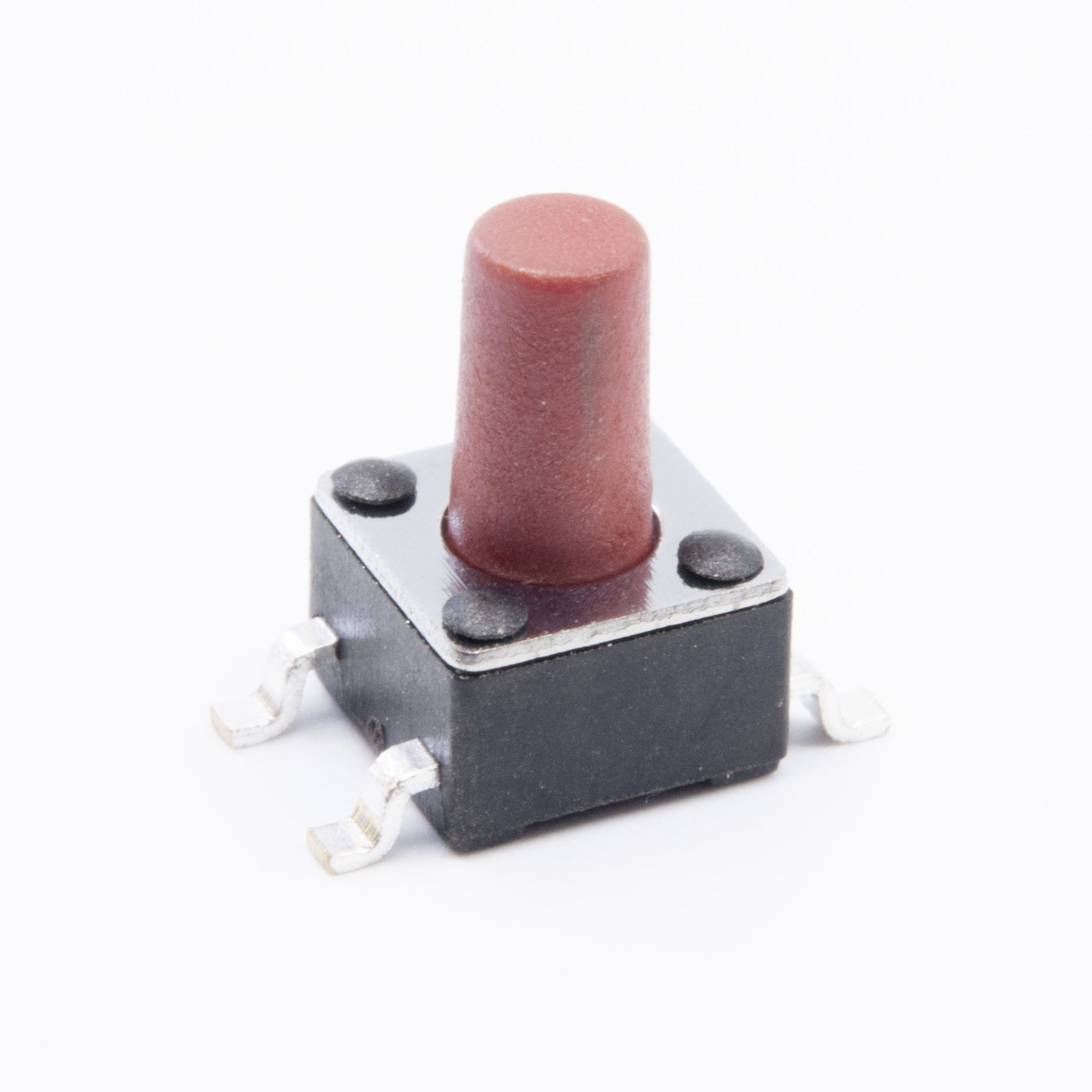

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TL3305CF260QG | ||
|---|---|---|
Digi-Key Part Number | EG5355TR-ND - Tape & Reel (TR) EG5355CT-ND - Cut Tape (CT) EG5355DKR-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | TL3305CF260QG | |
Description | SWITCH TACTILE SPST-NO 50MA 12V | |
Manufacturer Standard Lead Time | 14 Weeks | |
Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | TL3305CF260QG Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Contact Rating @ Voltage | 0.05A @ 12VDC | |
Actuator Type | Standard | |
Mounting Type | ||
Actuator Height off PCB, Vertical | 7.00mm | |
Actuator Length, Right Angle | - | |
Actuator Orientation | Top Actuated | |
Termination Style | Gull Wing | |
Outline | 4.50mm x 4.50mm | |
Illumination | Non-Illuminated | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Operating Force | 260gf | |
Ingress Protection | - | |
Features | - | |
Operating Temperature | -20°C ~ 70°C | |
Actuator Material | - | |
Switch Travel | 0.20mm | |
Mechanical Life | 200,000 Cycles | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | |
| Product Training Modules | |
| Video File | Additional Requirements for Selecting a Switch How Does the Switch Attach to your Product What Electrical Ratings do You Need? |
| Environmental Information | E-Switch RoHS 3 Cert |
| CAD Models | TL3305CF260QG Models |
| HTML Datasheet | |
| EDA Models | TL3305CF260QG Models |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
Quantity
All prices are in INR
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | ₹21.68000 | ₹21.68 |
| 10 | ₹21.25900 | ₹212.59 |
| 25 | ₹20.14200 | ₹503.55 |
| 100 | ₹18.24140 | ₹1,824.14 |
| 250 | ₹16.63064 | ₹4,157.66 |
| 500 | ₹15.45680 | ₹7,728.40 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1,000 | ₹13.18663 | ₹13,186.63 |
| 3,000 | ₹12.82008 | ₹38,460.24 |
| 5,000 | ₹12.08748 | ₹60,437.40 |
| 10,000 | ₹11.28163 | ₹1,12,816.30 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | EG5355DKR EG5355CT EG5355TR |
| Standard Package | 1,000 |
