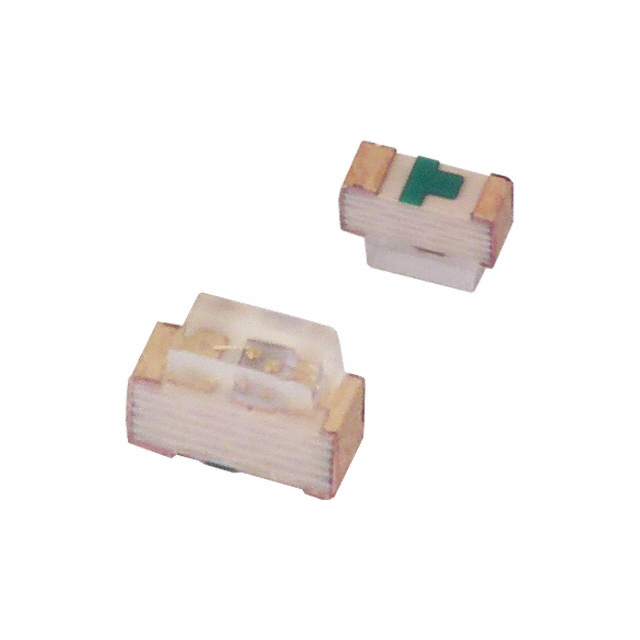

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LTST-S270TBKT | ||
|---|---|---|
Digi-Key Part Number | 160-1650-2-ND - Tape & Reel (TR) 160-1650-1-ND - Cut Tape (CT) 160-1650-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | LTST-S270TBKT | |
Description | LED BLUE CLEAR CHIP SMD R/A | |
Detailed Description | Blue 470nm LED Indication - Discrete 3.3V 0603 (1608 Metric) | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | LTST-S270TBKT Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | - | |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Color | ||
Configuration | Standard | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | ||
Lens Style | Rectangle with Flat Top | |
Lens Size | 1.20mm x 0.60mm | |
Voltage - Forward (Vf) (Typ) | 3.3V | |
Current - Test | 20mA | |
Viewing Angle | 130° | |
Mounting Type | ||
Wavelength - Dominant | ||
Wavelength - Peak | 468nm | |
Features | - | |
Package / Case | 0603 (1608 Metric) | |
Supplier Device Package | ||
Size / Dimension | 1.60mm L x 1.15mm W | |
Height (Max) | 0.60mm | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | LTST-S270TBKT |
| PCN Design/Specification | LTST-S27(0,1,2) Series Re-design Nov/2011 |
| HTML Datasheet | LTST-S270TBKT |
| EDA Models | LTST-S270TBKT Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
Quantity
All prices are in INR
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | ₹29.18000 | ₹29.18 |
| 10 | ₹23.01000 | ₹230.10 |
| 100 | ₹10.33790 | ₹1,033.79 |
| 500 | ₹9.33578 | ₹4,667.89 |
| 1,000 | ₹7.66921 | ₹7,669.21 |
| 2,000 | ₹6.66877 | ₹13,337.54 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 4,000 | ₹6.66898 | ₹26,675.92 |
| 8,000 | ₹6.00202 | ₹48,016.16 |
| 12,000 | ₹5.33512 | ₹64,021.44 |
| 28,000 | ₹5.00169 | ₹1,40,047.32 |
| 1,00,000 | ₹4.33481 | ₹4,33,481.00 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | LTSTS270TBKT 160-1650-6 160-1650-1 160-1650-2 |
| Standard Package | 4,000 |
