DRV8302-HC-C2-KIT: 3-Ph Motor Control, 8 ~ 60V in

Summary

The DRV8302-HC-C2-KIT is a motor control evaluation kit for spinning three phase brushless DC and brushless AC (BLAC) - often referred to as permanent magnet synchronous (PMSM) – motors with examples of both sensorless Field Oriented / Vector Control (FOC) and TI’s InstaSPIN-BLDC sensorless BLDC solution.

The DRV8302-HC-C2-KIT is a high-performance, power-efficient, cost-effective platform that speeds development for quicker time to market.

Applications include CPAP and pumps, E-bikes, E-scooters, medical pumps and drills, power tools, and robotics.

Specifications

Manufacturer Texas Instruments
Category Motor Control
Eval Board Part Number 296-29833-ND
Eval Board Supplier Texas Instruments
Eval Board Board not Stocked
Voltage In 8 ~ 60 V
Number of Motors and Type 1, 3-Ph BLDC, Sensorless
1, 3-Ph PMSM, Sensorlesss
Power / Current Out 1.7 A (Source)
2.3 A (Sink)
Features GUI / Design Software
Component Count + Extras 197 + 66
Application / Target Market Factory Automation
Medical
Motor Control
Robotics
Design Author Texas Instruments
Main I.C. Base Part DRV8302
Date Created By Author 2012-02
Date Added To Library 2013-11

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

Ultra Librarian Software:CAD Symbols and Footprints (Zip File) TI's CAD/CAE Symbols and Footprint Search DRV8302 - Datasheet DRV8302-HC-C2-KIT - User Guide

Media

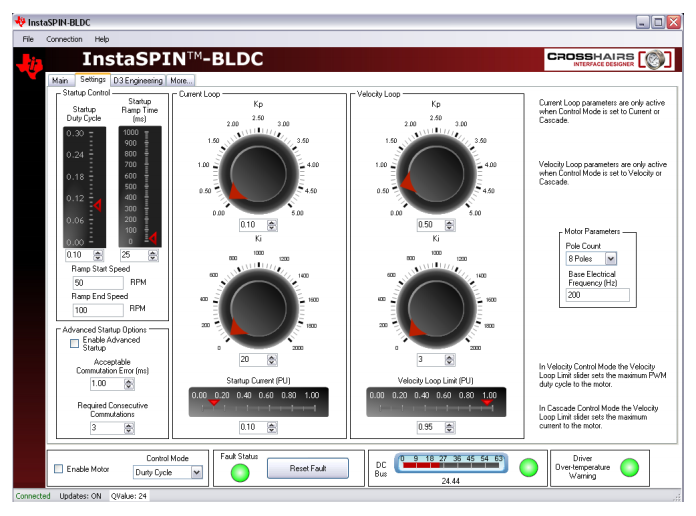

DRV8032_HC_C2_KIT_Schematic_1_Full.png DRV8302_HC_C2_KIT_Schematic_2_Full.png DRV8302_HC_C2_KIT_Schematic_3_Full.png DRV8302_HC_C2_KIT_Schematic_4_Full.png DRV8302_HC_C2_KIT_Schematic_5_Full.png DRV8032_HC_C2_KIT_Board_Full.jpg DRV8032_HC_C2_KIT_Block_Diagram_Full.png DRV8032_HC_C2_KIT_GUI_Image_Full.png
