BQ500210EVM-689(#1): Wireless Power, WPC-Certified

Summary

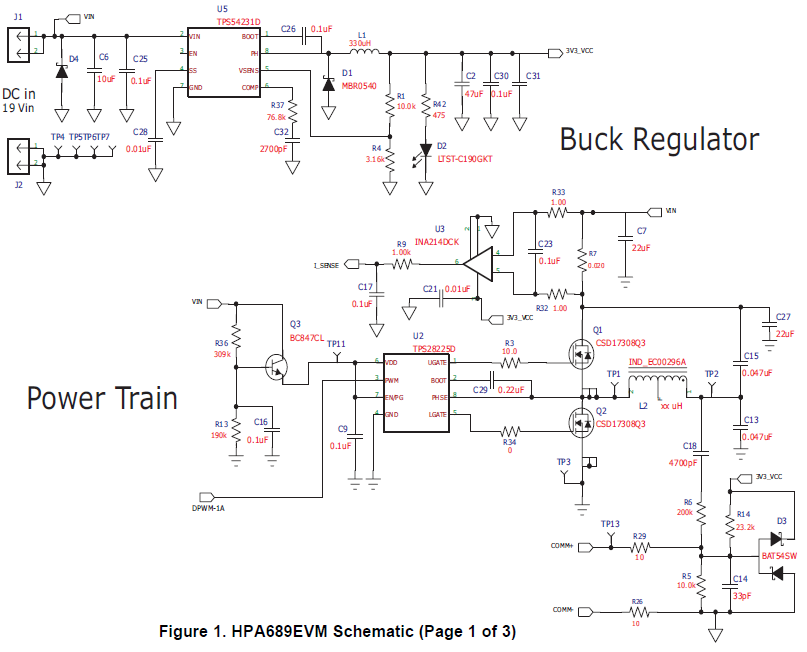

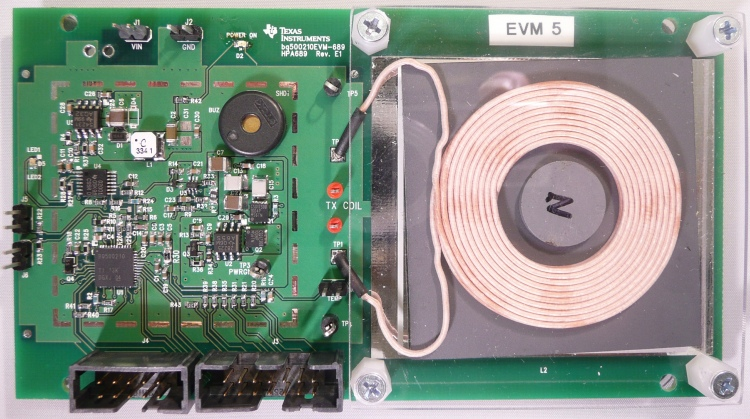

The bqTESLA™ wireless power evaluation kit from Texas Instruments is a high-performance, easy-to-use development kit for the design of wireless power solutions. Consisting of a single-channel transmitter and power supply side receiver and associated magnetics, the kit enables designers to speed the development of their end-applications.

The bq500210EVM evaluation module (EVM) provides all basic functions of WPC 1.0-compliant wireless charger pad. The EVM is intended to be used with bq51013EVM or any other WPC 1.0-compliant receiver.

Specifications

Manufacturer	Texas Instruments
Category	Wireless Communication
Sub-Category	Wireless Power / Inductive Charging
Eval Board Part Number	296-30296-ND
Eval Board Supplier	Texas Instruments
Eval Board	Board not Stocked
Voltage Out	5 V
Current Out	1 A
Protocol	Inductive
Voltage In	19 V
Current In	300 mA
Standard(s)	WPC 1.0

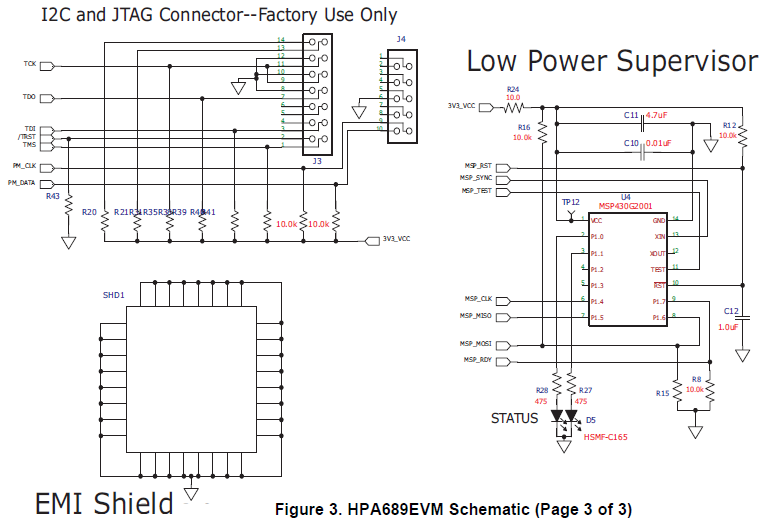

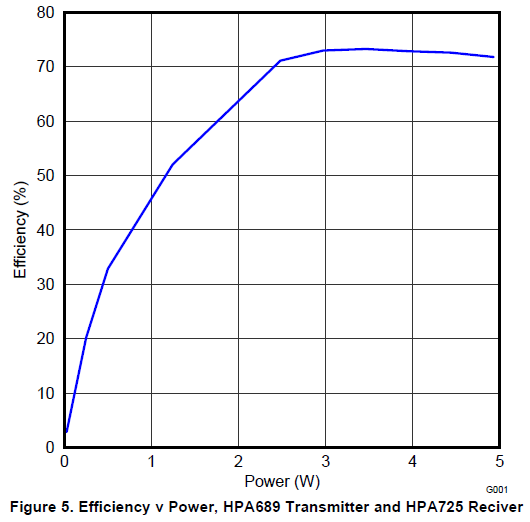

Efficiency @ Conditions	>72%, 19V in, 5V @ 2.6 ~ 5 W Out
Features	Status Indication Thermal Protection
Frequency	110 ~ 200 kHz
No-load Input Power @ Conditions	380mW @ 19V in
Component Count + Extras	84 + 20
Design Author	Texas Instruments
Main I.C. Base Part
Date Created By Author	2011-06
Date Added To Library	2017-05
