10236-6212PC
10236-6212PC

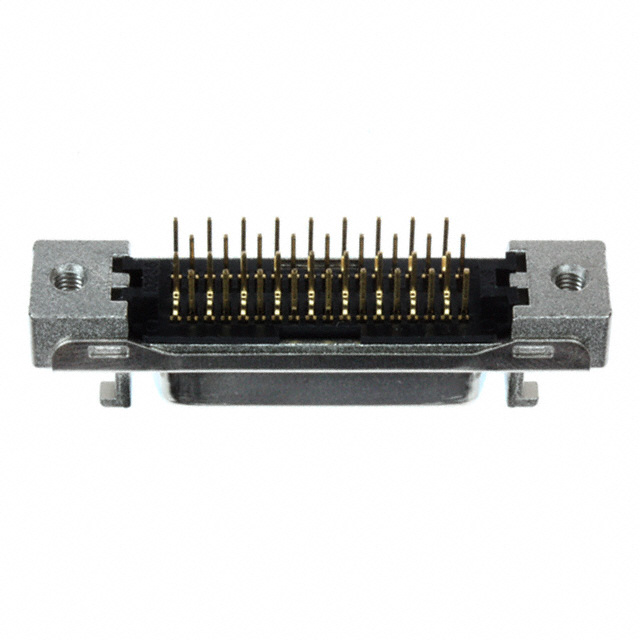

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
10236-6212PC
10236-6212PC
10236-6212PC_View1
10236-6212PC_View2

10236-6212PC

Digi-Key Part Number
3M1822-ND
Manufacturer
3M
Manufacturer Product Number
10236-6212PC
Description
CONN RCPT 36POS PCB SOLDER
Manufacturer Standard Lead Time
28 Weeks
Detailed Description
36 Position Receptacle Connector Panel Mount, Through Hole Solder
Customer Reference
Datasheet
 Datasheet
EDA/CAD Models
10236-6212PC Models
Product Attributes
Type
Description
Select All
Category
Mfr
3M
Series
102, Mini D Ribbon (MDR)
Package
Bulk
Product Status
Active
Connector Style
Outer Shroud Contacts
Connector Type
Receptacle
Number of Positions
36
Number of Rows
2
Mounting Type
Panel Mount, Through Hole
Termination
Solder
Flange Feature
Housing/Shell (M2.6)
Type
-
Features
Shielded
Contact Finish
Gold
Contact Finish Thickness
30.0µin (0.76µm)
Base Product Number
10236
Documents & Media
Resource TypeLink
Datasheets
Other Related DocumentsMDR Selection Guide
Product Training Modules
Featured ProductMDR Connectors
CAD Models10236-6212PC Models
HTML DatasheetMDR Series Qualification Report
EDA Models10236-6212PC Models
Product Drawings102xx-6212PC Series
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8536.69.4040
0 In Stock
Quantity
All prices are in INR
Bulk
QtyUnit PriceExt Price
1₹706.14000₹706.14
10₹638.19700₹6,381.97
25₹602.93200₹15,073.30
50₹588.20860₹29,410.43
100₹558.80410₹55,880.41
250₹499.97988₹1,24,994.97
500₹470.57030₹2,35,285.15
1,000₹411.74942₹4,11,749.42
Manufacturers Standard Package
Mating Products
You May Also Be Interested InSee All 28
Additional Resources
AttributeDescription
Other Names
7000090276
102366212PC
10236-6212PC-ND
JE150317673
54745226187
3M1822
4547452261871
Standard Package100
