Fast Recovery Diodes (FRED)

Product Highlights > Fast Recovery Diodes (FRED)

            Fast Recovery Diodes (FRED)
                    The ultra-fast recovery of MCC's FRED rectifies to increase efficiency in power supply designs


With their ultra-fast recovery diodes (FRED), MCC extends their fast switching diodes portfolio with types providing ultra-short reverse recovery time (t_rr) by appropriate switching characteristics.

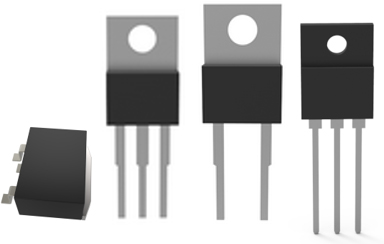

These FRED diodes are available in 200 V to 600 V (5 A, 8 A, 10 A, and 15 A) versions and TO-220, TO-220F, and D²PAK packages.

Fast recovery diodes are used in several power supply, boost converter, and PFC applications. Depending on the individual requirements, MCC offers standard-types, low V_F-types, and low t_rr-types.

Features

Small IR
High temperature capability
Soft recovery characteristics

Reduced EMI and improved performance
Special types (low t_rr and low V_F available)

Fast Recovery Diodes (FRED) - Single

Manufacturer Part Number	Description	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Available Quantity	Price	View Details
MUR60120B-BP	DIODE STANDARD 1200V 60A TO247AD	3.3 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	85 ns	705 - Immediate	$387.65	View Details
MURS820A-BP	DIODE STANDARD 200V 8A TO220AC	1 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	0 - Immediate	$119.28	View Details
MURS860FA-BP	DIODE STANDARD 600V 8A ITO220AC	1.6 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	0 - Immediate	$105.30	View Details

Fast Recovery Diodes (FRED) - Arrays

Manufacturer Part Number	Description	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Mounting Type	Available Quantity	Price	View Details
MURS1620CTA-BP	DIODE ARRAY GP 200V 16A TO-220AB	1 V @ 8 A	35 ns	Through Hole	0 - Immediate	$137.92	View Details
MURS1620FCTA-BP	DIODE ARRAY GP 200V 16A ITO220AB	1 V @ 8 A	35 ns	Through Hole	0 - Immediate	$156.55	View Details
MURS1660CTA-BP	DIODE ARRAY GP 600V 16A TO-220AB	1.6 V @ 8 A	35 ns	Through Hole	112 - Immediate	$82.94	View Details
